Meriam 3800 Minigauge Digital Pressure Gauge
|
Item Number: 3800
Manufacturer: Meriam Instruments
Part Number: 3800
|
|
Meriam Model 3800 Minigauge Digital Pressure Gauge
The Model 3800 MINIGAUGE from Meriam Instruments provides digital pressure measurementat an economical price.
Pressure ranges are available from vacuum to 10,000 PSIG at an accuracy of +/-1% Full Scale. One 9 Volt alkaline or
lithium battery powers the transducer and the LCD display. The display is a 4.5 digit LCD with 0.4" high display on for
approximately 40 seconds. Automatic shut-off after this time period conserves battery power. Field calibration is simple

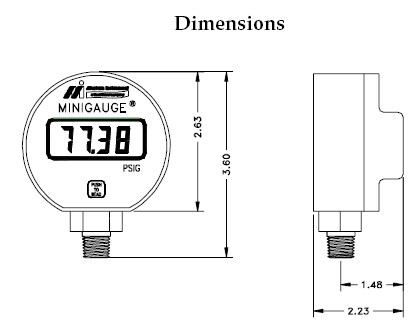

using the zero and span adjustments potentiometers. The rugged ABS plastic indicator housing is 2.75 inches in diameter.
Wetted components are 17-4 PH stainless steel stem. Typical applications include test and measurement in the process
industries, hydraulics, pneumatics, industrial gases and OEM's.
Features:
- +/-1 % Full Scale Accuracy
- Ranges from Vacuum to 10,000 PSIG Available
- Digit LCD
- Low Battery Indicator
- Compatible with 17-4 PH Stainless Steel
Technical Specifications:
| ACCURACY: |
+/-1% Full Scale, Temperature Effect +/- 0.1% per Deg F |
| DISPLAY: |
4.5 Digit LCD (0.4" Character Height) |
| POWER: |
One 9 Volt Battery (Included), Auto-Off Function |
| ENCLOSURE: |
Custom Molded ABS Plastic Housing |
| ENGINEERING UNITS: |
Available in either PSIG, Bar or kg/cm2 |
| OVER-PRESSURE LIMITS: |
Twice the full scale range. |
| WEIGHT: |
7 ounces |
| CERTIFICATIONS: |
NIST Certificate Optional |
| FIELD CALIBRATION: |
Zero and Span Adjustments on Rear Casing |
| MEDIA COMPATIBILITY: |
Isolated Sensor for Processes |
| PROCESS CONNECTION: |
1/4" Male NPT |
| TEMPERATURE: |
Storage: -4 to 140 Deg F (-20 to 60 Deg C)
Operating: 32 to 122 Deg F (0 to 50 Deg C) |
 |
