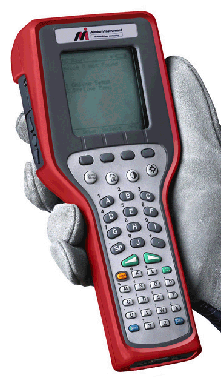

Meriam MFC 4150 Hart Communicator -Discontinued

Call for DPC Software License Options

The MFC 4150 HART® Communicator is the new latest HART communicator from Meriam Process Technologies. HART field devices can be configured and trimmed using the MFC. The MFC is a full function HART Communicator with features that optimize commissioning, configuration and maintenance operations. MFC 4150 supports all HART devices at the Universal and Common Practice command levels plus a large and growing list of devices at the Device Specific command level.

Features:

Use the MFC 4150 to
Commission devices
- Step-by-step configuration
- Document as-left configuration
- Electronic Birth Certificate
Operations
- Reconfiguration for process changes
- Reconfiguration for batch runs
- Document as-found and as-left configurations
- Populate Meriam DMS database software
Device Maintenance
- Troubleshoot devices with HART
- View device error messages
- Clone devices to commission replacements
- Preventive review of device status

MFC 4150 supports all HART devices at the Universal and Common Practice command levels plus a large and growing list of devices at the Device Specific command level. View our device list by CLICKING HERE. The MFC 4150 features HART communication for Analytical, Flow, Level, Pressure & Temperature transmitters.

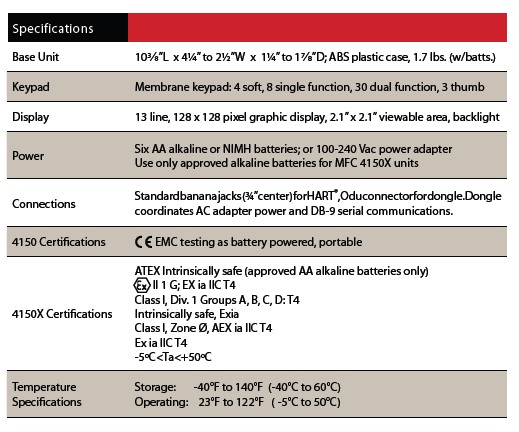

Technical Specifications:

The MFC offers several unique features that provide HART users with a more useful, more reliable and more available communication tool. Combine it with our MFT4000 Calibrator / Communicator and Device Management System (DMS) documenting software and the trio offersthe only single-source device management solution capable of meeting continually changing documentation requirements.
