Meriam M100 Manometer (M1 Series)

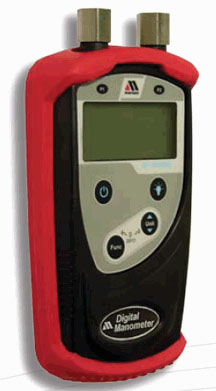

Meriam M1 Series Manometers (M100)

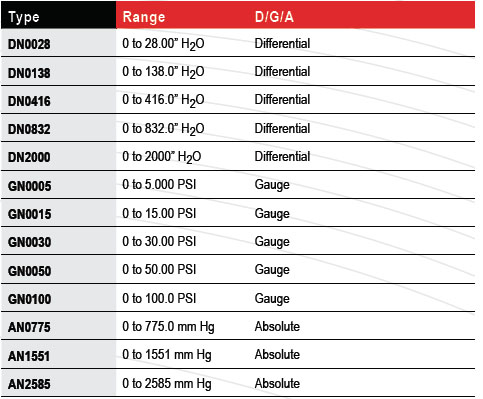

The M1 Series of handheld manometers from Meriam Process Technologies combines form, fit and function to deliver precision pressure measurement for field, plant or lab use. For reference indication and shirt pocket convenience, select the low cost M100 Digital Manometer with its +/- 0.25% FS accuracy. Or specify the M101 Calibrator when better accuracy is needed for more exacting measurements. The M101 delivers +/- 0.10% FS accuracy and additional features normally found on higher priced instruments. Both models are available in differential, gauge and absolute pressure versions.

Applications:

• Leak testing for low pressure gas systems
• Pressure drop monitoring across filters
• Monitoring vacuum on condensers or pumps
• Verification of CPAP or BIPAP systems for home or hospital settings

Features:

• Engineering Units (8-selectable)
  Inches of H2O @ 20C, mm of H2O @ 20C, mm of Hg @ 0C, Inches of Hg @ 0C, kPa, mBar, Bar, PSI and user selectable.
• Media Compatibility
• Non-isolated sensor for clean, dry, non-corrosive gases.
• Pressure Limits
• (DN) units - 3 x F.S. on high side only or 200 PSI, whichever is less.
  (GN or AN) units - 3 x F.S. range or 200 PSI, whichever is less.
• Accuracy
• M100 delivers +/- 0.25% FS - No temperature effect over the entire operating range 14F to 122F (-10C to +50C).
• Min/Max (M101 only)
• Displays the MIN and MAX pressures.
• Hold (M101 only)
• Freezes the pressure measurement on the display, however, the bar graph is still active.
• Ave (M101 only)
• Displays a continuous filtered average of the pressure measurements.
• Temp
• Displays the internal ambient temperature of the M1 in C or F.
• Record Mode
• The M1 can store up to 240 pressure measurements.
  • Automatic - the current value is automatically stored every 5 seconds, for up to 20 minutes.
  • Manual - the current value is stored every time the Units key is pressed, up to 240 times.
• Backlight
• A green backlight is user activated via the backlight key. A red backlight is automatically activated during an error/ over range condition.
• Auto Shutoff
• To conserve battery life, the M1 will automatically power off after 20 minutes of keypad inactivity.
• Field Recalibration
• M1 can be calibrated in the field for zero and span.
• Low Battery Indication
• BAT icon is displayed when batteries require replacement. Approximately 2 hours of run time is provided on a low battery condition.
• Bar Graph
• Horizontal bar for full scale pressure reference (0-100%)

Note 1: Calibration Kit Includes:
(3) Nylon Tubing, 6 Ft., P/N: ZA34103-3
(2) Tee, Brass, 1/8" O.D. Tubing, P/N: ZA34112
(1) Adapter, 3/16" Hose Barb to 1/8" MNPT, P/N: ZA34142-2
(6) Adapter, 1/8" O.D. Tube to 1/8" MNPT, P/N: ZA34012

Note 2: Basic Test Kit Includes:
Nylon Tubing, 10 ft., PN: ZA34103-2
Adapter, Brass, Tubing to 1/8" MNPT PN: ZA34102
