Martel T140 Pressure Calibrator
|
Item Number: T140
Manufacturer: Martel Electronics
Part Number: T140
Product Options
* denotes required field
Martel T-140 Pressure Range Selection*
Martel T-140 Pressure Pump Kit (Pump Range Should Match Range Selection Above)*
You must select an option for 'Martel T-140 Pressure Pump Kit (Pump Range Should Match Range Selection Above)'.
Martel T-140 Calibration Option*
* Whole number only
|
|

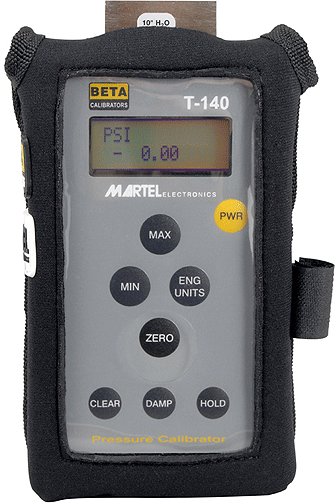

MARTEL T140 Pressure Calibrator
The Martel T-140 Pressure calibrator is available in several ranges (10", 200" H2O, 30 PSIG, 100 PSIG, 300 and 3000 PSIG).
Operation of theT-140 calibrators is made easy through the use of a sealed membrane keypad with simple controls. When combined with our MECP Hand Pump, the T140 Kit makes a great package to handle your calibration requirements.
Features:
- High Accuracy Read Capability
- Differential Pressure Measurement
- Isolated Sensor on 300 & 3000 PSIG Models
- Rugged Dust Tight, Water Resistant Case
- Easy to Read LCD
- Intuitive Controls Make Operation Easy for Infrequent Users
- Powered by a Common 9 Volt Battery
Three Kit Options include all accessories for immediate testing:
Kit 1 Includes:T140 Calibrator, MECP100 Pump, Fitting and Connectors, Rugged Carrying Case, Test Leads, 9V Battery, Instruction Manual, and NIST Calibration Certificate. Use with +/-200"WC, 30 or 100 PSIG Models
MECP 100 PSIG Pump with Vacuum Capability
Kit 2 Includes:T140 Calibrator, MECP500 Pump, Fitting and Connectors, Rugged Carrying Case, Test Leads, 9V Battery, Instruction Manual, and NIST Calibration Certificate. Use with 300 PSIG Model
MECP 500 PSIG Pump with Vacuum Capability
Kit 3 Includes:T140 Calibrator, MECP10000 Pump, Fitting and Connectors, Rugged Carrying Case, Test Leads, 9V Battery, Instruction Manual, and NIST Calibration Certificate. Use wtih 3000 PSIG Model
MECP 10000 PSIG Hydraulic Pump
Technical Specifications:
| 5 Ranges Available |
|
Ranges:
|
-14.00 to 30.00 PSIG/ PSID or
-14.0 to 100.0 PSIG/ PSID or
-14.0 to 300.0 PSIG/ PSID or
-14.0 to 3000 PSIG/ PSID or
+/-200" H2O |
|
Resolution:
|
30 PSI 0.01 PSIG
100 PSI .01 PSIG
300 PSI .01 PSIG
3000 PSI 0.1 PSIG
200" 0.01 inH2O |
| Accuracy* |
|
30/1000 PSI:
|
+/-0.05% F.S. +/-1 LSD
-5 PSI to Full Scale |
|
300/3000 PSI:
|
+/-.05% of Reading +/-2 LSD
Note: For Vacuum Below -5 PSI Accuracy is
0.1% of F.S. +/-1 LSD |
|
±200" Water:
|
+/-0.1% F.S. +/-1 LSD |
| Operating Temp.: |
0 to 50°C |
| Storage Temp.: |
-20 to 60°C |
| Temp. Stability**: |
0.01% F.S./°C |
| MAX Overpressure: |
2x |
|
Ports:
|
Two 1/8” FNPT |
|
Media:
|
30 PSI Non-Corrosive Gas or Liquids
100 PSI Non-Corrosive Gas or Liquids
200" Non-Corrosive Gas or Liquids |
300 PSI/3000 PSI
|
Isolated Sensor
All Media |
|
Engineering Units:
|
PSI, inH2O, cmH2O, mm
H2O, BAR, mmHg, kPa, and
kg/ cm2 |
|
Key Features:
|
Zero, Min/ Max, Clear, Damp & Hold |
|
Weight:
|
14 Oz |
*18°C to 28°C
**0 to 18C and 28°C to 50°C
Included Accessories:
- Test Leads
- Carrying Case
- 9V Battery
- Instruction Manual
|
Our Price: Starting at $35.00
The Seahorse Hurricane Series SE-300 hard case is IP6 certified, watertight, airtight, dustproof, and available in a variety of colors with or without pick and pluck foam.
|
Our Price: Starting at $68.00
The Seahorse Hurricane Series SE-520 hard case is IP6 certified, watertight, airtight, dustproof, and available in a variety of colors with or without pick and pluck foam.
|
Product Reviews
|
|
