Martel MECP 2000 High Pressure Pneumatic Air Calibration Pump
|
Item Number: MECP2000
Manufacturer: Martel Electronics
Part Number: 1919967
Product Options
Martel MECP-2000 Pump Kit Options
* Whole number only
|
|

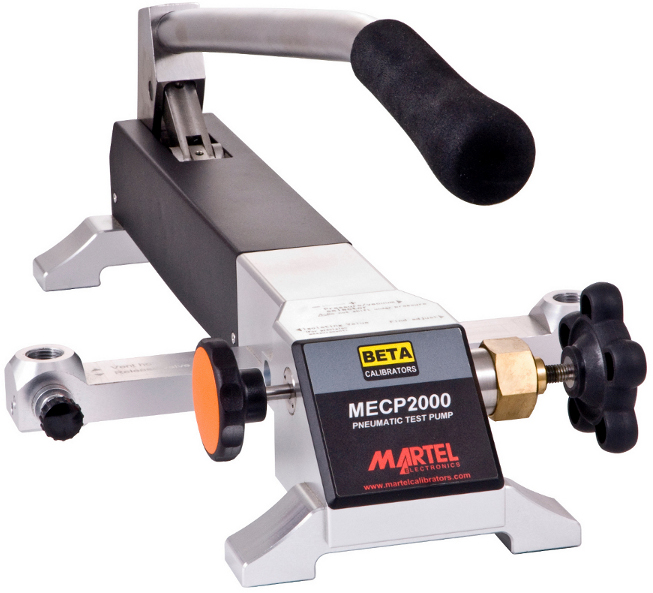

Martel MECP 2000 High Pressure Pneumatic Air Calibration Pump
The new Martel MECP-2000 high pressure pneumatic calibration hand pump is a revolutionary portable air pump that can generate pressures up to 2000PSIG (140bar) and vacuum to -14 PSIG (-0.9bar) quickly and easily. The MECP-2000 employs a unique dual stage pump design where a low pressure, high volume chamber is used to pre-load a secondary high pressure chamber. This allows the pump to reach high pressure quickly and with a minimal amount of effort. The pump arm action stays smooth through the entire stroke. A precise vernier control allows pressure to be fine tuned with high resolution. The vernier chamber provides enough range so it can be used to generate low pressures (200" H20 or 500mbar) with no pumping, thus both high and low pressure calibrations work can be done with the Martel MECP-2000 pump.
Applications
- High pressure calibration where hydraulic pump fluids are not desired
- Eliminate the need to drag nitrogen cylinders around your plant
- Complete flow computer calibration solution for custody transfer applications

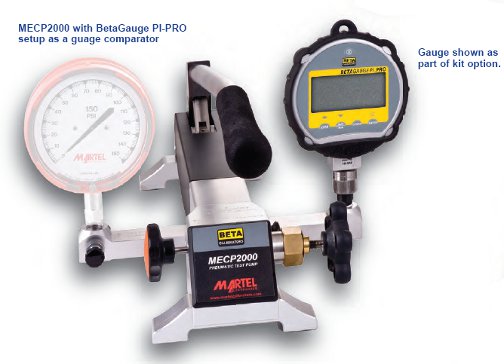

- Bench-top gauge comparator General pneumatic calibration (Add a Beta Gauge PIR-Pro Test gauge)
General Features

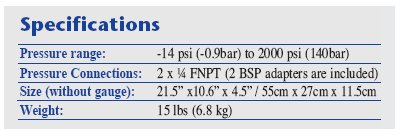

- Generates -14 PSIG Vacuum (-0.9bar) to 2000 PSIG (140bar) by hand
- Precision vernier allows fine adjustment at both high and low pressures
- Vent valve offers precise control and vents at the pressure connection to prevent pump contaminates
- Use as both a portable or bench-top pump
- Double output manifold with 1/4 NPT female fittings includes BSP adapters
- Extremely rugged durable design that will stand up to field use
- Isolation valve protects pump and increases fine control range
|
Our Price: Starting at $246.00
