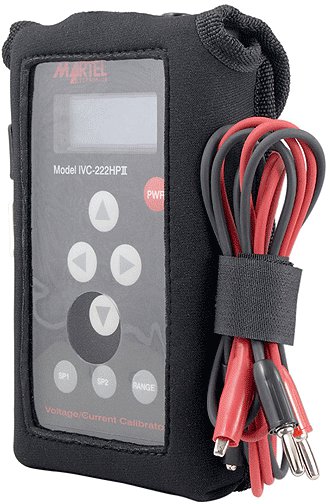

Martel IVC-222HPII mA & Voltage Calibrator

MARTEL IVC-222HPII Voltage and Current Calibrator

The Martel electronics IVC-222HPII Voltage/Current Calibratoris a general purpose current and voltage source that can be used in engineering, manufacturing, test, and process control applications. It combines both digital and analog circuitry to achieve its’ rated specifcations in a small, reliable package.

The Martel IVC-222HPII has the capability to store and recall up to two setpoint values using the SP1 and SP2 keys. An RS-232 port accessed via a custom cable (available from Martel) allows the calibrator to be computer controlled for automated testing.

Features:

• Remarkable 0.015% of reading accuracy
• Four ranges: 200 mV, 2 V, 20 V, and 24 mA
• Intuitive, easy-to-use controls
• RS-232 interface allows computer control
• Built-in 24 V supply can drive mA loops over 1,000 Ohms
• Rugged, lightweight, hand-held unit
• Includes test leads, carrying case, 9 V battery, factory certificate, and instruction manual
