Martel BetaProbe TI High Precision Digital Thermometer
|
Item Number: BetaProbe TI
Configuration: 1919876
Manufacturer: Martel Electronics
Part Number: BetaProbe TI
Product Options
* denotes required field
Measurement Range Options*
Martel BetaProbe TI Software
BetaProbe TI Calibration Options
* Whole number only
|
|
Martel BetaProbe™ TI Highly Accurate Digital Thermometer
The Fluke Martel BetaProbe TI digital thermometer was designed to replace liquid-in-glass (LIG) thermometers and remove dangersous mercury from the lab and the plant. It can also serve as a reference standard for other types of digital or analog temperature indicators. Plus, intrinsically safe certification means it can be used virtually anywhere. The BetaProbe TI+ (plus) model was designed to offer a wider measurement range for applications up to 300 °C.

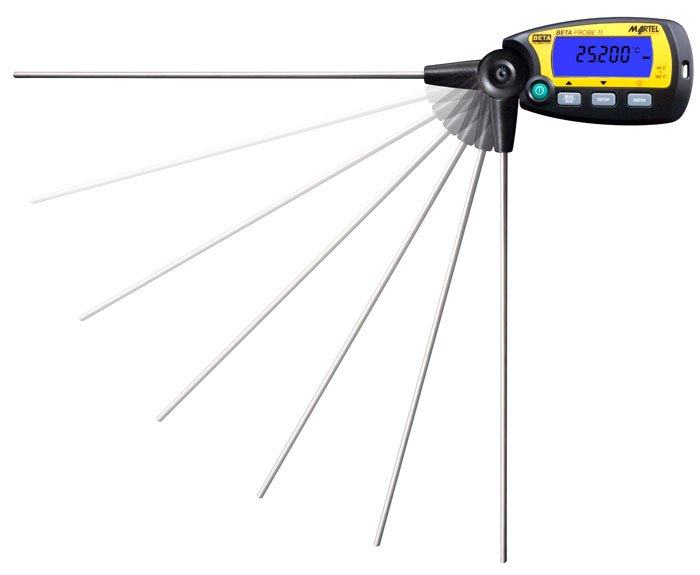

The TI employs a Pt100 platinum RTD thin film sensor (BetaProbe TI) or wire wound sensor (BetaProbe TI+) resulting in highly accurate readings with minimal immersion depth. The integral probe also rotates through 90° for any angle reading of the display.
The BetaProbe TI/TI+ features a user configurable trend indicator which allows the usesr to know at a glance if the reading is stable or drifitng higher or lower. The display also features an intense blue backlight LED for easy reading in any lighting condition from full sun to total darkness.
If you need to record some temperature data during a test, the TI/TI+ can ne supplied with a high performance, easy to use temperature data logger. This will allow the user to have a host of data recording options, including download to the BetaProbe TI/TI+, recall and format, display and store the data using common spreadsheet files. The BetaProbe’s RS-232 serial interface can also be used for configuration and recalibration.
The BetaProbe TI/TI+ also includes a Min/Max storage and recall; adjustable sample ratse; auto shutoff and damping plusa battery life of 250+ hours of continuous use.
Features:
-
Wide measurement range replaces many glass themometers
-
Low total cost of owndership and easy to recalibrate
-
Extremely good accuracy and selectable resolution of 0.1, 0.01, 0.001
-
Quick readings with stability indication
-
Record data with optional BetaLOG™ TI software
-
Temperature trend indicator
-
Durable and highly reliable
-
250 hour continious use battery life
-
User set-up features
-
Includes: instrument, custom carrying case, instruction manual, factory calibration report, and batteries
Technical Specifications:
| Range: |
-50 °C to 160 °C (-58 °F to 320 °F) |
| Accuracy: |
±0.06 °C (0.1 °F) |
| Resolution: |
0.1, 0.01, 0.001 (user selectable) |
| Sample Rate: |
0.5/sec, 1/sec, 2/sec, (user selectable) |
| Operating Temp: |
-10 °C to 50 °C |
| Operating %RH: |
0-95% humidity non-condensing |
| Storage Temp: |
-20 °C to 60 °C |
| Enclosure: |
IP50 |
| Tempco: |
±10 ppm/°C from -10 °C to 18 °C and 28 °C to 50 °C |
| EMC Compliance: |
EN 61326:2006 Annex C CISPR II, Edition 5.0-2009 Class "B" |
| Power: |
Battery (3) AAA alkaline batteries 250+ hours continuous without backlight |
| Auto Shutoff: |
User setup: 1 to 30 minutes or disable |
| Size (display): |
4" x 2" x 1" (10 cm x 5 cm x 3 cm) |
| Probe: |
3/16" diameter x 12" length (5 mm x 300 mm) (Others Available) |
| Weight: |
6.9 oz (75 g) |
Optional Martel BetaLOG™ TI Data Logging Software:
The optional BetaLOG TI software allows the BetaProbe TI to become a high performance, easy to use temperature data logger.
When the data logging feature is activated, the BetaProbe can store over 10,752 readings. Configuration Options Include:
-
Interval selections from 1 second to 1 hour
-
Runs can range from a few seconds to several weeks
-
Data capture mode types -Average/Minimum/Maximum -Interval end
-
Data storage options -ASCII text file (.TXT) -Comma Delimited (.CSV) -Microsoft® Excel (.XLS) -Microsoft® Excel with template formats
BetaLOG TI runs quickly on most modern Windows™ PCs. Minimum requirements are:
-
Pentium CPU, 1.0 GHz
-
512 MB RAM
-
5 MB disk storage plus storage for data
-
Windows XP Professional, Vista, Windows 7
-
Optional Microsoft Excel
BetaLOG TI is provided with the software on CD-ROM media, RS-232 cable, USB/Serial adapter and complete user guide.
|
|
|
