Martel Electronics BetaGauge 311A Pressure Calibrator
|
Item Number: BG311A
Manufacturer: Martel Electronics
Part Number: BETA 311A
Product Options
* denotes required field
BetaGauge 311 Pressure Range Options*
You must select an option for 'BetaGauge 311 Pressure Range Options'.
BetaGauge 311 Kit Selection
BetaGauge 311 Calibration Certificate
* Whole number only
|
|

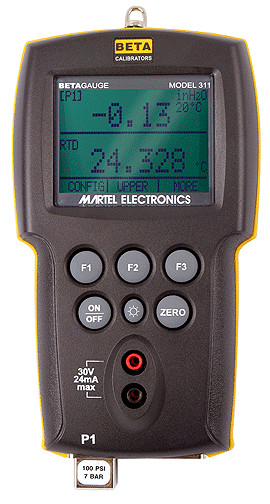

Betagauge 311A Pressure Calibrator
The BetaGauge 311A Pressure Calibrator provides unmatched pressure measurement flexibility over any competitive unit, setting a new standard over the venerable BetaGauge 320. The BetaGauge 311 provides 0.025% FS accuracy on both internal, isolated, stainless steel pressure sensors. An external pressure module connection supports all BetaPort-P pressure modules for even greater measurement capability. A Pt100 RTD input is provided for temperature measurements accurate to 0.1 C (0.2 F). In addition, the BetaGauge 311 measures 4-20 mA loop current and up to 30 VDC. An internal 24 V Loop Power Supply can power a transmitter under test. The BetaGauge 311 supports up to three simultaneous measurements in any combination, including three pressure measurements. With simultaneous display of two pressure and an RTD temperature measurement, the BetaGauge 321 is ideal for gas flow calibration(custody transfer) applications. The BetaGauge 311 is available in many ranges from 10" water up to 10,000 psig. Compound and Absolute (PSIA) ranges are also available. It is also available in a Kit, which includes the BetaGauge 311 Pressure Calibrator, Pt100 RTD Probe, batteries, manual, NIST-traceable certificate, test leads, and hard-sided carrying case.
Features:
- Isolated, stainless steel, pressure sensors (Except 10" Water and 1 PSIG Ranges)
- +/- 0.025% F.S. Accuracy
- Temperature-compensation ensures accuracy in field applications
- External pressure module connection supports all BETA Port-P pressure modules (25 ranges)
- Pt100 RTD input for temperature measurement
- Accurate to 0.1 Deg C (0.2 F) for RTD Measurement
- Measure 4-20 mA input
- Internal 24 V Loop Power Supply can power a transmitter
- Measures up to 30 V DC
- Large graphic style LCD with backlight
- Display can be configured to display up to 3 inputs simultaneously
- Add a hand pump, Ideal for gauge calibration applications
- Switch test on Pressure 1 or external modules
- Up to five frequently used setups to be stored
- Last setup automatically recalled on power-up
- % Error and damping functions
- Small, rugged compact design operates
- Uses (4) standard AA batteries
|
