Martel Beta DPC300A Pneumatic Calibrator with Integral Electric Pump
|
Item Number: DPC-300A
Manufacturer: Martel Electronics
Part Number: 1920022
Product Options
Martel Beta DPC300A Calibration Option
* Whole number only
|

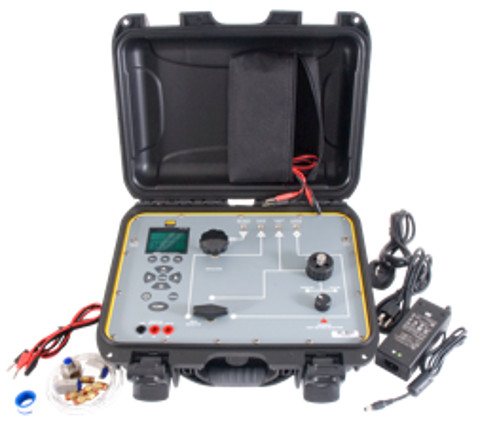

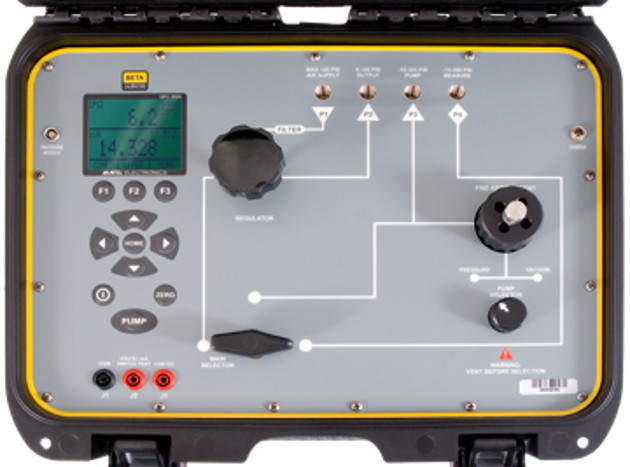

 Martel Beta DPC300A Dual System Pneumatic Calibrator Martel Beta DPC300A Face View Martel Beta DPC300A Kit |
|

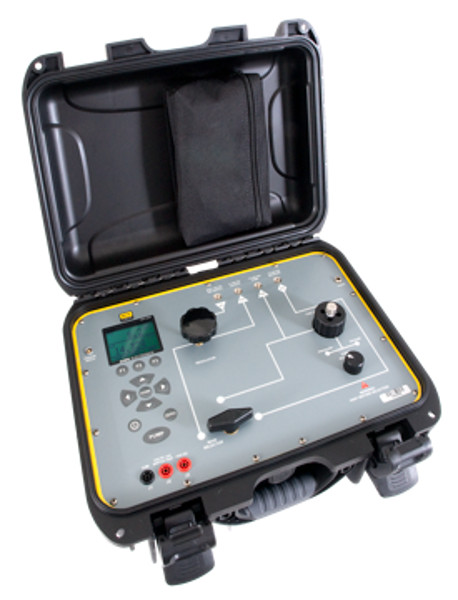

Martel Beta DPC300A Dual System Pneumatic Calibrator
Martel BETA DPC300A is with full digital precision and accuracy, a dual pressure system and a built-in loop calibrator function, it’s a pressure calibration powerhouse in a portable format. The internal pump goes up to 300 psi with push-button ease. Exact values are set using the fine vernier control knob. Plant air, up to 100 psi is controlled with a precision regulator for low inches of water on up. DPC300A has a built-in loop calibrator with 24 VDC instrument loop power supply; high capacity rechargeable NiMH batteries for 50 hours of use or 125 cycles of pumping to 300 psi, Martel’s trademark 3 key function menus, ClearBrite™ LCD display and multimode operation to name a few. This high performance calibrator comes in a high performance housing. It’s a rugged IP67 rated blown resin case that can take a pounding when used in the field. IP67 means waterproof including immersion when the case is closed.
Features
- Dual pressure systems
- Regulated plant air to 100 psi / 7 bar
- Integral electric pump to 300 psi / 20 bar
- Pressure accuracy up to ±0.025% of full scale
- External pressure module interface (29 ranges)
- Built-in loop calibrator function
- 24 VDC instrument power supply
- User’s selection of 13 engineering units
- Rugged IP67 case (cover closed)
- Long life rechargeable NiMH battery power

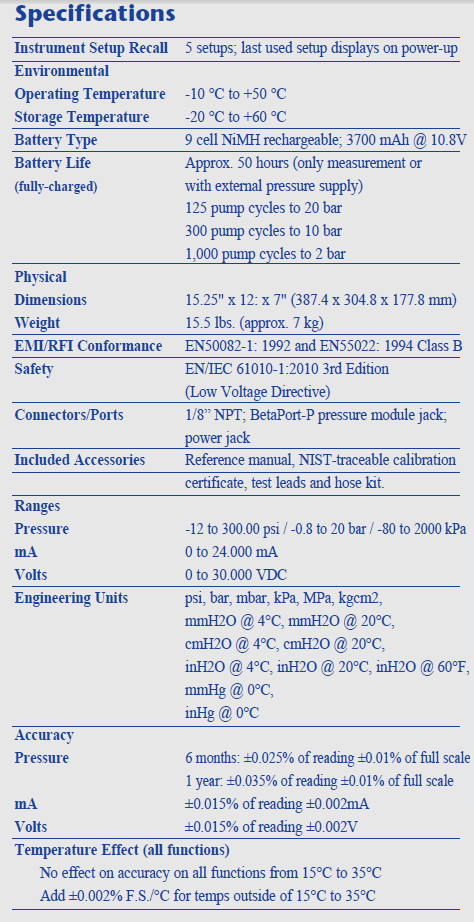

Technical Specification
|
Martel DPC Pressure Calibrator is available in a 30 or 100 PSIG Range, Replace worn Wally Boxes or overpriced Pneucal's
| |
