Martel Electronics BetaGauge 311A-EX Intrinsically Safe Pressure Calibrator
|
Item Number: 1919915
Manufacturer: Martel Electronics
Part Number: 1919915
Product Options
* denotes required field
BetaGauge 311A-EX Pressure Range Options*
You must select an option for 'BetaGauge 311A-EX Pressure Range Options'.
BetaGauge 311A-EX Custody Transfer Kit Selection
BetaGauge 311A-EX Calibration Certificate
* Whole number only
|
|

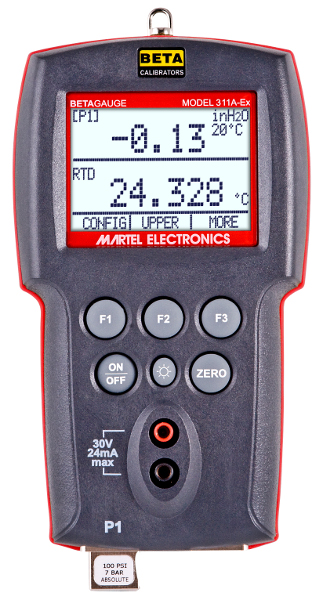

Martel Electronics BetaGauge 311A-EX Intrinsically Safe Pressure Calibrator
Whichever you choose, the single sensor BetaGauge 311A-EX, or the dual sensor BetaGauge 321A-EX, you’ll have everything you need for calibrating pressure anywhere. Gas custody transfer is the ideal application for the accuracy and capabilities of the BetaGuage 321A-EX. Create a custom configuration by selecting from any two ranges. The
BetaGauge 311A-EX can be configured by selecting from any range. Both are supplied with soft case, AA batteries, manual, NIST-traceable certificate, and test leads. Both are available in kits including the Pressure Calibrator, Pt100 RTD Probe, AA batteries, manual, NIST-traceable certificate, test leads, and hard-sided carrying case.
Features
- Single or dual pressure sensors with up to ±0.025% F.S. accuracy
- 25 available pressure ranges
- Temperature-compensation ensures accuracy in the field applications
- Pt100 RTD input for temperature measurement, accurate to 0.1°C (0.2°F)
- Measure 4-20 mA input
- ClearBrite™ graphic style LCD with backlight can be configured to display up to 3 inputs simultaneously (i.e. pressure 1, pressure 2, and RTD or any combination of inputs)
- Ideal for gas flow calibration (custody transfer) applications
- Pressure displayed in the user’s choice of 19 engineering units
- Switch test on Pressure 1 or Pressure 2
- Operating mode layers support simple measurements to complex applications
- Up to five frequently used setups can be stored; last setup automatically recalled on power-up
- % Error and damping functions
- Small, rugged compact design operates on four (4) Alkaline AA batteries
Technical Specifications
|
Our Price: Starting at $68.00
The Seahorse Hurricane Series SE-520 hard case is IP6 certified, watertight, airtight, dustproof, and available in a variety of colors with or without pick and pluck foam.
|
By using the Beta-Martel Model BPPA-100 BETA Port Pressure Adapter, beta pressure modules are fully compatible with the Martel DMC-1410, MC-1210, MC-1010, M3001, Betagauge 330, Betagauge 311A/321A, Betagauge 301, M2001
|
Martel MECP100 Pressure Vacuum Calibration Pump generates vacuum to 100 PSIG for most basic pressure calibration applications.
|
The Martel MECP500 is a hand held portable calibration pump which generates from -28" Hg vacuum to +600 PSIG pressure.
|
The Ametek Model T-975 pneumatic pressure pump features an extended range vernier adjustment for precisely controlling pump pressure and comfortable pistol grip handle. Generates Vacuum to 580 PSIG
|
Ametek T-620H Hydraulic Pressure Calibration Pump Generates 5000 PSIG
|
The Martel MECP10K generates up to 10,000 psig using a variety of fluids including water or oil.
|
The Martel Beta Port-P Pressure Module allows pressure calibration and measurement functionality to be added the most Martel Process, pressure and bench-top calibrators. Ranges from 10" Water to 10,000 PSIG are available.
|
BetaGauge 321A-EX is a dual pressure sensor with up to ±0.025% F.S. accuracy.
| |
