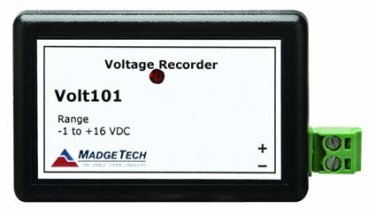

MadgeTech Volt101 Voltage Data Loggers
There are many different types of applications in which knowing a voltage level can provide necessary information used to enhance performance and/or give the user proper control of their equipment.
The Volt101 is geared toward helping users measure and record low-level voltages with high accuracy and resolution. The device records 16 bits of resolution, ideal for accurately measuring battery voltages, sensor monitoring, photovoltaic studies, measuring thermopiles as well as many other common voltage sources.
With user programmable engineering units available inside the device, the user can scale the input voltage to most any type of unit desired such as temperature. This is a unique and very useful feature for presentations. The Volt101 is available in three different input ranges: 2.5V, 15V and 30V versions.
Features:
-
Real-time operation
-
Programmable start time
-
Reusable
-
Miniature size
-
Low cost
-
User-friendly
-
CE compliant
Applications:
Specifications:
|
Input Connection:
|
Removable screw terminal
|
|
Model:
|
|
|
Voltage Range:
|
|
|
Voltage Resolution:
|
|
|
Calibrated Accuracy:
|
|
|
Input Impedance:
|
|
|
Overload Protection:
|
|
|
Analog Conversion Time:
|
133 ms
|
|
Frequency Rejection:
|
60Hz
|
|
Temperature Coefficient:
|
<25ppm/ C; <10ppm/ C typical
|
|
Specified Accuracy Range:
|
Nominal range @ 25 C
|
|
Engineering Units:
|
Engineering Units: U ser may define units up to 10 characters in length.
This value is stored within the device.
|
|
Scale Factor:
|
User may program any desired scaling factor from +/-1.000E-31 to +/-9.999E+31.
The scaling factor is stored within the device.
|
| Start Modes:
|
Software programmable immediate start or delay start up to six months in advance
|
|
Memory:
|
32,767 readings; software configurable memory wrap
|
|
Reading Rate:
|
1 reading every second to 1 every 12 hours
|
| Real Time Recording:
|
May be used with PC to monitor and record data in real time
|
| Calibration:
|
Digital calibration through software
|
| Calibration Date:
|
Automatically recorded within device
|
|
Battery Type:
|
3.6V lithium battery included; user replaceable
|
|
Battery Life:
|
1 year typical
|
| Data Format:
|
Date and time stamped V, mV, uV, engineering units specified through
software
|
| Time Accuracy:
|
+/-1 minute/month (at 20 C, RS232 cable not in use)
|
| Computer Interface:
|
PC serial or USB (interface cable required); 2,400 baud
|
| Software
|
Windows 95/98/ME/NT/2000/XP based software
|
|
Operating Environment:
|
-40 to +80 C, 0 to 95%RH non-condensing
|
|
Dimensions:
|
1.4" x 2.5" x 0.6" (36mm x 64mm x 16mm)
|
|
Weight:
|
0.9 oz (24 g)
|
|
Materials:
|
ABS plastic
|
|
Approvals:
|
CE compliant
|
|
**Input impedance is greater than 1 Ohm during acquisition for the VOLT101-2.5
|
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT RECHARGE, DISASSEMBLE, HEAT ABOVE 212 F,
INCINERATE OR EXPOSE CONTENTS TO WATER.
|
MadgeTech Data Recorder Software
displays voltage data in an easy to use graph.
The Windows®-based software package allows the
user to effortlessly collect, display and analyze data.
A variety of powerful tools allow you to examine,
export, and print professional looking data with just
a click of the mouse.
|
|
Software Features:
-
Simultaneously analyze data from several units or deployments; easily switch to a single data series
-
Statistics: Calculate averages, min, max, standard deviation, and mean kinetic temperature with the touch of a button
-
Graphical Cursor: One click displays readings by time, value, parameter or sample number
-
Export Data: Export data in a variety of common formats, or switch to Excel® with a single click
-
Data Table: Instantly access tabular view for detailed dates, times, values, and annotations
-
Calibration: Automatically calculate and store calibration parameters
-
Scaling Options: Autoscale function fits data to the screen, or allows user to manually enter their own values
-
Logger Configuration: Easy set up and launch of data loggers with immediate or delayed start, preferred sample rate, and device ID
-
Formatting Options: Change colors, line styles, plotting options, show or hide channels quickly
-
Communications: Automatically sets up communications port, or lets user select configuration
|
