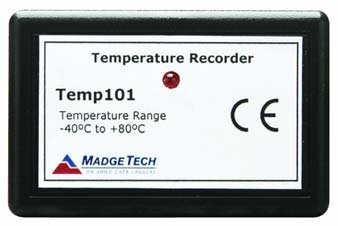

MadgeTech Temp101Temperature Data Logger

MadgeTech Temp101Temperature Data Logger

This is an all-in-one compact, portable, easy to use device that will measure and record up to 32,767 measurements. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Start and stop the device directly from your computer and its small size allows it to fit most anywhere. The Temp101 makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our user-friendly software does the rest.

Features:

• Miniature size

• Programmable alarm
• Real-time operation
• Low cost
• Programmable start time
• N.I.S.T. traceable
• User-friendly
• CE compliant

• Applications:

  • Record temperature of perishable goods in transit
  Warehouse monitoring
• HVAC
• Medical and Pharmaceutical
• Museum monitoring
• Environmental studies
• Replace costly strip chart recorders
• Implement HACCP programs

• Specifications:

  Temperature Sensor:	Semiconductor Calibration: Digital calibration through software
  Temperature Range:	-40 to +80 C Calibration Date: Automatically recorded within device
  Temperature Resolution:	0.1 C Battery Type: 3.6V lithium battery included, user replaceable
  Calibrated Accuracy:	+/-0.5 C Battery Life: 1 year typical
  Data Format:	Date and time stamped C, F, K, R
  Start Modes:	Software programmable immediate start or delay start up to six months in advance
  Time Accuracy:	+/-1 minute/month (RS232 cable not in use)
  Computer Interface:	PC serial or RS232C COM (Interface cable required); 2,400 baud
  Real Time Recording:	May be used with PC to monitor and record data in real time
  Software:	Windows 95/98/ME/NT/2000/XP based software
  Operating Environment:	-40 to +80 C, 0 to 95%RH non-condensing
  Memory:	32,767 readings Dimensions: 1.4” x 2.2” x 0.6” (36mm x 56mm x 16mm)
  Reading Rate:	1 reading every 2 seconds to 1 every 12 hours
  Weight:	0.8 oz (22 g)
  Material:	ABS plastic
  Alarm:	Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits
  Approvals:	CE compliant

  MadgeTech Data Recorder Software

• displays temperature data in an easy to use graph.

  The Windows

  ®-based software package allows the user to effortlessly collect, display and analyze data. A variety of powerful tools allow you to examine, export, and print professional looking data with just a click of the mouse.

  Software Features:

  • Multiple Graphs:
  Simultaneously analyze data from several units or deployments; easily switch to a single data series
• Statistics:  Calculate averages, min, max, standard deviation, and mean kinetic temperature with the touch of a button
• Real-Time Recording:  Collect and display data in real-time while continuing to log
• Export Data: Export data in a variety of common formats, or switch to Excel® with a single click
• Graphical Cursor: One click displays readings by time, value, parameter or sample number
• Calibration: Automatically calculate and store calibration parameters
• Data Table: Instantly access tabular view for detailed dates, times, values, and annotations
• Logger Configuration: Easy set up and launch of data loggers with immediate or delayed start, preferred sample rate, and device ID
• Scaling Options: Autoscale function fits data to the screen, or allows user to manually enter their own values
• Communications: Automatically sets up communications port, or lets user select configuration
• Formatting Options: Change colors, line styles, plotting options, show or hide channels quickly
• Printing: Automatically print graphical or tabular data
