MadgeTech Temp1000 Rugged Temperature Datalogger

MadgeTech Temp1000 Rugged Temperature Datalogger

Its rugged enclosure lends itself to applications such as dishwashers and sterilization, and commonly used in environmental studies, food storage, medical and pharmaceutical applications.

The Temp1000 is submersible up to 150' (45m) of water and can record temperatures of up to +80 C (+176 F).  With the capability to record up to 32,767 data points and to record every two seconds, data can be captured even for brief events. The user-replaceable battery is rated to one year of typical use. The non-volatile memory will hold valuable data indefinitely even if the battery should become discharged.

The MadgeTech software will display data in degrees of Celsius, Fahrenheit, Kelvin and Rankine. The powerful software can export the data to an MS Excel

Features:

• Rugged
• Reusable
• Submersible to 150' (45m)
• Programmable start time
• Real-time operation
• N.I.S.T. traceable
• CE compliant
• User-friendly
• Low cost

Applications:

• Implement HACCP Programs

• Environmental studies
• Well monitoring
• Dish washer testing
• Hostile envirionment monitoring
• Medical and Pharmaceutical

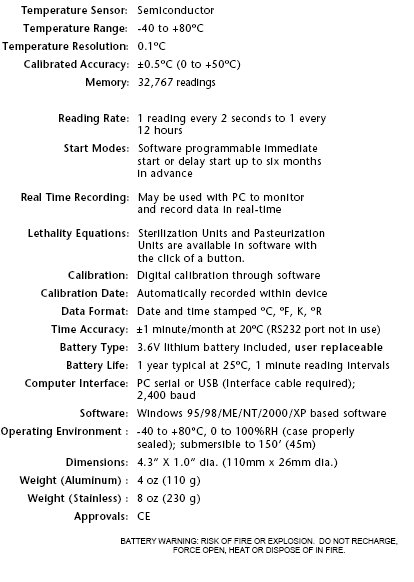

• Specifications:



  Model	Description
  TEMP1000	Rugged Temperature Recorder, aluminum enclosure
  TEMP1000-SS	Rugged Temperature Recorder, stainless steel enclosure
  IFC110	Software, manual and RS232 interface cable (Required to use logger)
  IFC200	Software, manual and USB interface cable (Required to use logger)

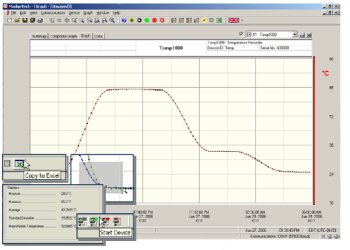

  MadgeTech Data Recorder Software displays temperature data in an easy to use graph. The Windows®-based software package allows the user to effortlessly collect, display and analyze data. A variety of powerful tools allow you to examine, export, and print professional looking data with just a click of the mouse.

  Software Features:

  • Multiple Graphs:
    Simultaneously analyze data from several units or deployments; easily switch to a single data series
  • Statistics:
    Calculate averages, min, max, standard deviation, and mean kinetic temperature with the touch of a button
  • Real-Time Recording:
    Collect and display data in real-time while continuing to log
  • Export Data:
    Export data in a variety of common formats, or switch to Excel® with a single click
  • Graphical Cursor:
    One click displays readings by time, value, parameter or sample number
  • Calibration:
    Automatically calculate and store calibration parameters
  • Data Table:
    Instantly access tabular view for detailed dates, times, values, and annotations
  • Logger Configuration:
    Easy set up and launch of data loggers with immediate or delayed start, preferred sample rate, and device ID
  • Scaling Options:
    Autoscale function fits data to the screen, or allows user to manually enter their own values
  • Communications:
    Automatically sets up communications port, or lets user select configuration
  • Formatting Options:
    Change colors, line styles, plotting options, show or hide channels quickly
  • Printing:
    Automatically print graphical or tabular data
