MadgeTech Vaccine Temperature Monitoring System (VTMS) Data Logger
|
Item Number: VTMS
Manufacturer: MadgeTech
Part Number: VTMS
* Whole number only
|
 MadgeTech Vaccine Temperature Monitoring System Data Logger w/ LCD Display Glycol Bottles |
|

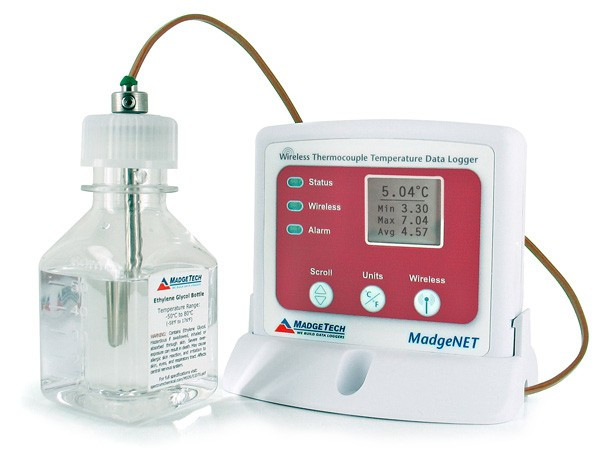

MadgeTech Vaccine Temperature Monitoring System (VTMS) Data LoggerMadgeTechs Vaccine Temperature Monitoring System (VTMS) is ideal for the continuous measurement and data logging of temperature sensitive vaccines or pharmaceuticals in refrigerators, freezers, and coolers. The system includes a NIST traceable RFTCTemp2000A data logger with thermocouple, Glycol bottle and a power supply. Additionally, the RFTCTemp2000A data logger in the VTMS system has a convenient LCD to ensure temperature parameters are met, in real time. The current reading, minimum, maximum and average statistics can all be obtained through the display.
In the real-time chart recording mode the VTMS can alert the user, or other personnel, via e-mail or text message if the refrigerator has failed, or if the temperature is outside of the nominal range. This allows users to take immediate actions to ensure vaccines and pharmaceuticals in storage are not destroyed. To prevent false alarms, the RFTCTemp2000A is connected to a Glycol bottle which provides temperature buffered readings.
The VTMS is available with an extended warranty.
Features
- NIST Traceable Calibration
- Wireless Two-Way Communication
- Thermocouple and Glycol Bottle Included
- Ambient and Thermocouple Temperature Monitoring
- View Data in Real time
- 3 Year Battery Life
- Battery Life Indicator
- Field Upgradeable
- Audible and LED Alarm Indicators
- Trigger Settings
- Cumulative Alarm Display
Applications
- Laboratories and Hospitals
- Vaccine Temperature Monitoring
-Refrigerators -Freezers
- Medical and Pharmaceutical Monitoring
- Process Verification and Validation
Technical Specifications
TEMPERATURE
| Internal Channel Temperature Sensor |
Semiconductor |
|---|
| Internal Channel Temperature Range |
-20 to 60°C |
|---|
| Internal Channel Temperature Resolution |
0.1°C |
|---|
| Internal Channel Temperature Calibrated Accuracy |
±1.0°C |
|---|
| Remote Channel Temperature Sensor |
Type K Thermocouple (Included) |
|---|
GENERAL
| Memory |
16,128/channel |
|---|
| Reading Rate |
1 second up to 24 hours |
|---|
| Baud Rate |
250,000 |
|---|
| Cold Junction Compensation |
Automatic based on internal channel |
|---|
| Battery Life |
3 years typical at 1 minute reading rate |
|---|
| Material |
ABS Plastic |
|---|
| Dimensions |
3.0" x 3.5" x 0.95" (76.2mm x 88.9mm x 24.1mm) - Data logger only |
|---|
| Operating Environment |
-20 to +60°C, 0 to 95%RH non-condensing |
|---|
| Required Interface Package |
RFC1000 (wireless); USB to Mini USB Cable |
|---|
|
