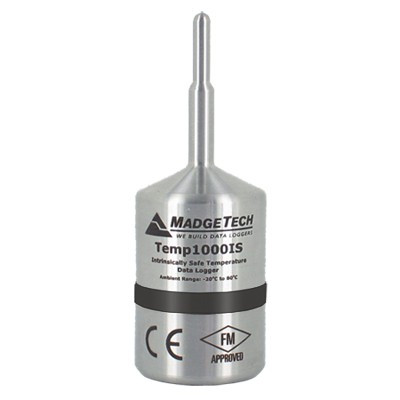

MadgeTech Temp1000IS Intrinsically Safe Data Logger
|
Item Number: Temp1000IS
Manufacturer: MadgeTech
Part Number: Temp1000IS
* Whole number only
|
|
MadgeTech Temp1000IS Intrinsically Safe Data LoggerThe Temp1000IS temperature data logger is a rugged, submersible, battery powered, stand alone device which can be used to automatically record temperatures between -20 and 80°C. This all in one compact, portable, easy to use device is able to measure and record data for up to 32,767 temperature readings. The Temp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2 groups A, B, C and D hazardous environments. This certification makes the device ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications. Its Real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The Temp1000IS makes data retrieval quick and easy. Simply plug the device into an empty COM and USB port and our user-friendly software does the rest.The Temp1000IS is available with an extended warranty.
Features
- Intrinsically Safe
- Rugged
- Reusable
- Programmable Start Time
- Stainless Steel Enclosure
- NIST Traceable
- User-friendly
- Low Cost
- CE Compliant
Benefits
- Simple Setup and Installation
- Minimal Long-Term Maintenance
- Long-Term Field Deployment
Applications
- EtO Sterilization
- Implement HACCP Programs
- Food Preparation and Processing
- Environmental Studies
- Well Monitoring
- Dishwasher Testing
- Hazardous and Hostile Environment Monitoring
- Medical and Pharmaceutical
Technical Specifications
TEMPERATURE
| Temperature Sensor |
Semiconductor |
|---|
| Temperature Range |
-20 to +80°C |
|---|
| Temperature Resolution |
0.1°C |
|---|
| Temperature Calibrated Accuracy |
±0.5°C |
|---|
GENERAL
| Memory |
32,767 |
|---|
| Reading Rate |
1 reading every 2 seconds to 1 every 12 hours |
|---|
| Battery Life |
2 year typical at 15 minute reading intervals |
|---|
| Material |
316 Stainless Steel |
|---|
| Dimensions |
2.0" x 1.0" dia. (50.8mm x 25.4mm dia.) |
|---|
| Operating Environment |
-20°C to +80°C, 0 to 100%RH (case properly sealed) |
|---|
| Required Interface Package |
IFC400 |
|---|
| Approvals |
CE, IS rated |
|---|
|
