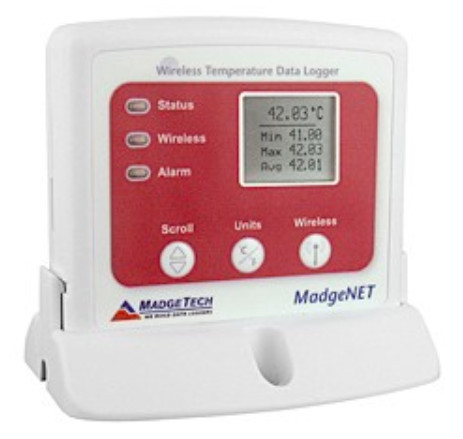

MadgeTech RFTemp2000A Wireless Temperature Data Logger
|
Item Number: RFTemp2000A
Manufacturer: MadgeTech
Part Number: RFTemp2000A
* Whole number only
|
|
MadgeTech RFTemp2000A Wireless Temperature Data Logger
The RFTemp2000A is a wireless data logger featuring a digital display. The device measures ambient temperatures, making it ideal for monitoring perishable goods, chemicals and more. Starting, stopping and downloading from the device are all performed wirelessly using the RFC1000 wireless transceiver, allowing the user to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at periodic intervals.
The convenient digital display provides the current reading as well as minimum, maximum and average statistics for a convenient snap shot of the logged data. For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm setting. Through the software, email and text message alarms can also be sent. The RFTemp2000A also features programmable trigger settings for applications in which temperature logging is critical only above or below certain temperatures. This information may be programmed into the device, and the data logger will only begin to log data to memory, once the temperature limit has been exceeded.

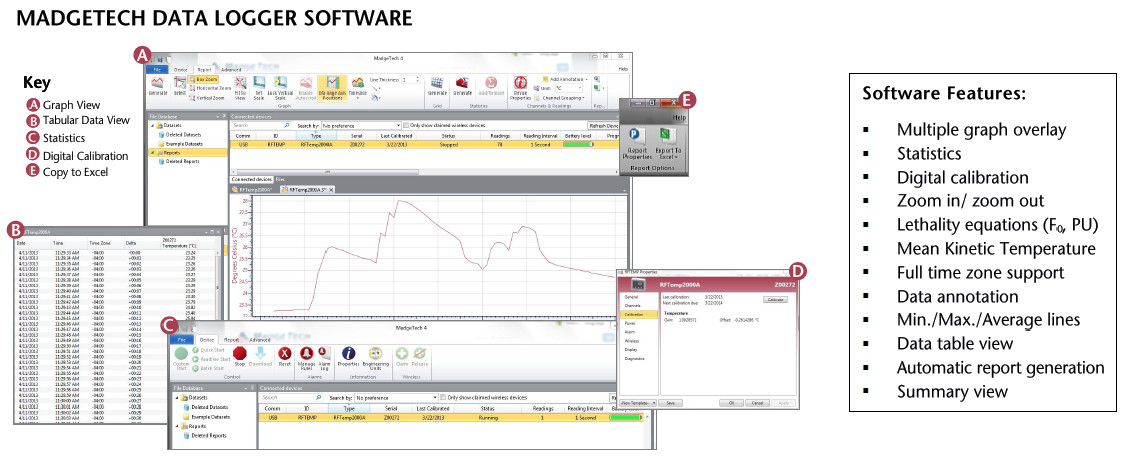

The RFTemp2000A can be used as a single, wireless data logging system, yet can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional MadgeTech wireless loggers and transceivers may be required). The RFTemp2000A utilizes the new MadgeTech 4.0 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
The RFTCTemp2000A is available with an extended warranty.
Features
- Wireless Two-Way Communication
- Ambient Temperature Monitoring
- View Data in Real-Time
- 5 Year Battery Life
- Battery Life Indicator
- NIST Traceable
- Field Upgradeable
- Audible and LED Alarm Indicators
- Cumulative Alarm Delay
  Technical Specifications
TEMPERATURE
| Internal Channel Temperature Sensor |
Internal Semiconductor |
|---|
| Internal Channel Temperature Range |
-20~+80°C |
|---|
| Internal Channel Temperature Resolution |
0.01°C |
|---|
| Internal Channel Temperature Calibrated Accuracy |
±0.5°C |
|---|
WIRELESS
| RF Carrier Frequency |
2.45GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|
| Output Power |
+0dBm typical |
|---|
| Receiver Sensitivity |
-95dBm typical |
|---|
| Typical outdoors Line of sight |
Up to 2000' |
|---|
| Typical Indoors line of sight |
Up to 500' |
|---|
GENERAL
| Memory |
32,256 readings per channel |
|---|
| Reading Rate |
1 reading every second up to 1 reading every 24 hours |
|---|
| Baud Rate |
250,000 |
|---|
| LED Indicators |
Green, Blue & Red |
|---|
| Battery Life |
5 years (at a 1 minute reading rate) |
|---|
| Material |
ABS plastic |
|---|
| Dimensions |
3.25" x 3.5" x 0.95" 82.6mm x 88.9mm x 24.1mm) - Data logger only |
|---|
| Operating Environment |
-20~+80°C, 0~95%RH non-condensing |
|---|
| Required Interface Package |
RFC1000 |
|---|
| Approvals |
US(FCC), CA(IC), CE |
|---|
|
MadgeTech RFC1000 features a 7" pivoting external antenna, which increases the transmission distance and provides greater signal strength.
|
MadgeTech RFC1000-IP69K can withstand wash down cycles using caustic chemicals, making it ideal for harsh environments. This model includes a high powered transceiver with an IP69K ingress protection rating.
|
