MadgeTech RFTCTemp2000A Wireless Thermocouple Temperature Data Logger
|
Item Number: RFTCTemp2000A
Manufacturer: MadgeTech
Part Number: RFTCTemp2000A
Product Options
* denotes required field
MadgeTech RFTCTemp2000A Thermocouple Connection Option*
You must select an option for 'MadgeTech RFTCTemp2000A Thermocouple Connection Option'.
MadgeTech RFTCTemp2000A Calibration Options
* Whole number only
|
|

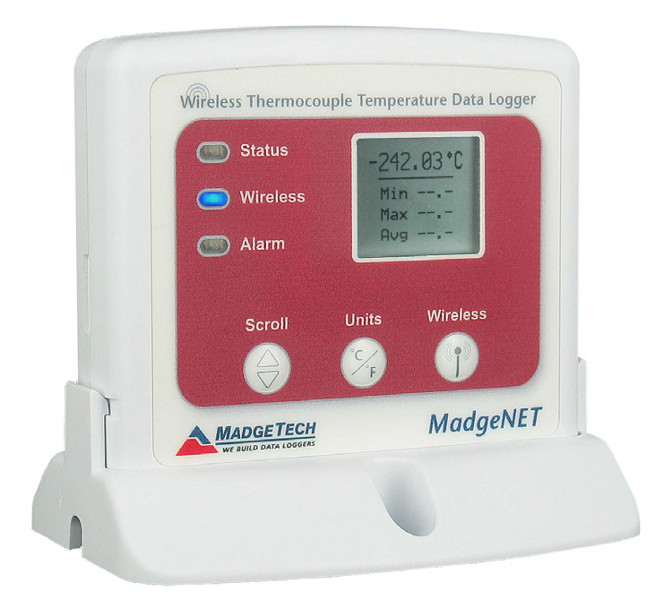

MadgeTech RFTCTemp2000A Wireless Thermocouple Temperature Data Logger
The RFTCTemp2000A is two-way Wireless thermocouple based temperature data logger with LCD. Transmits up to 2000' maximum (outdoors unobstructed). Built-in memory also stores data internally. Features a built-in temperature sensor for cold junction compensation (CJC). An external thermocouple probe is required (not included). Accepts J, K, T, E, R, S, B, and N type thermocouples.
This device measures ambient temperatures, as well as remote temperature via a thermocouple (sold separately), making it ideal for monitoring perishable goods, vaccine storage, chemicals and more. Starting, stopping and downloading from the device are all performed wirelessly using the RFC1000 wireless transceiver, allowing customer to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at period intervals.
The convenient digital display provides the current reading for both channels. Minimum, maximum and average statistics are also provided for a convenient snap shot of the logged data. For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm. Through the software, email and text message alarms can also be sent. The RFTCTemp2000A also features programmable trigger settings for applications in which temperature logging is critical only above or below a certain temperature. This information may be programmed into the device, and the data logger will only begin to log data to memory, once the temperature limit has been exceeded.
The RFTCTemp2000A can be used as a single, wireless data logging system, yet can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional MadgeTech wireless loggers and transceivers may be required). The RFTCTemp2000A utilizes the new MadgeTech Software, version 4.0. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
The RFTCTemp2000A is available with an extended warranty.
Features
- Wireless Two-Way Communication
- Ambient and Thermocouple Temperature Monitoring
- View Data in Real-Time
- 3 Year Battery Life
- Battery Life Indicator
- NIST Traceable
- Field Upgradeable
- Audible and LED Alarm Indicators
- Trigger Settings
- Cumulative Alarm Delay
Benefits
- Fast Installation
- Minimal Long-Term Maintenance
- Full Communication From One PC
- Time and Money Saving with Battery Management
- Easily Isolate Critical Data
- Reduction of False Alarms
Applications
- Clean Rooms
- Oven Temperature Monitoring
- Laboratories and Hospitals
- Medical and Pharmaceutical
- Warehouse mapping
- Storage of Perishable Goods
- Chemical Storage
- Incubator Monitoring
- Refrigerator and Freezers

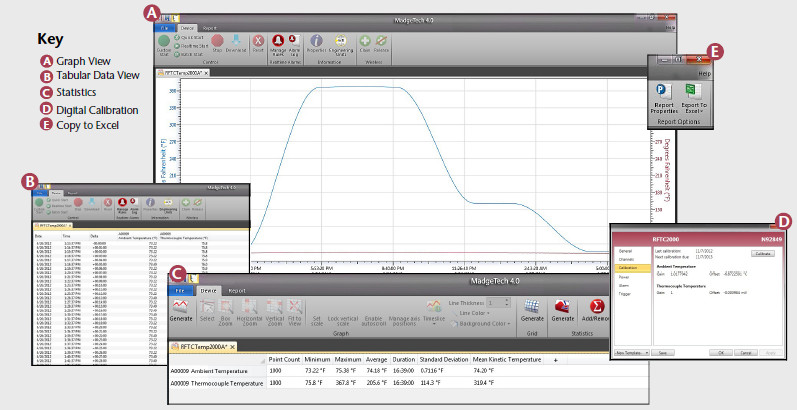

MADGETECH DATA LOGGER SOFTWARE
Software Features:
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Data table view
- Automatic report generation
- Summary view
Technical Specifications
TEMPERATURE
| Internal Channel Temperature Sensor |
Internal Semiconductor |
|---|
| Internal Channel Temperature Range |
-20~+60°C |
|---|
| Internal Channel Temperature Resolution |
0.1°C |
|---|
| Internal Channel Temperature Calibrated Accuracy |
±0.1°C |
|---|
| Remote Channel Temperature Sensor |
Thermocouple types: J,K,T,E,R,S,B,N |
|---|
| Remote Channel Temperature Range |
Thermocouple dependent |
|---|
| Remote Channel Temperature Resolution |
Thermocouple dependent |
|---|
| Remote Channel Temperature Calibrated Accuracy |
Thermocouple dependent |
|---|
WIRELESS
| RF Carrier Frequency |
2.45GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|
| Output Power |
+0dBm typical |
|---|
| Receiver Sensitivity (RFC101A) |
-95dBm typical |
|---|
| Typical outdoors Line of sight |
Up to 2000' |
|---|
| Typical Indoors line of sight |
Up to 500' |
|---|
GENERAL
| Memory |
16,128 readings per channel |
|---|
| Reading Rate |
1 reading every second up to 1 reading every 24 hours |
|---|
| Baud Rate |
250,000 |
|---|
| LED Indicators |
Green, Blue & Red |
|---|
| Battery Life |
3 years (at a 1 minute reading rate) |
|---|
| Material |
ABS plastic |
|---|
| Dimensions |
3.0" x 3.5" x 0.95" (76.2mm x 88.9mm x 24.1mm) - Data logger only |
|---|
| Operating Environment |
-20~+60°C, 0~95%RH non-condensing |
|---|
| Required Interface Package |
RFC1000 |
|---|
| Approvals |
US(FCC), CA(IC), CE |
|---|
Product Tables
| Thermocouple |
Range(°C) |
Resolution |
Accuracy |
| J |
-210 to +760 |
0.1°C |
±.5°C |
|---|
| K |
-270 to +1370 |
0.1°C |
±.5°C |
|---|
| T |
-270 to +400 |
0.1°C |
±.5°C |
|---|
| E |
-270 to +980 |
0.1°C |
±.5°C |
|---|
| R |
-50 to +1760 |
0.5°C |
±2°C |
|---|
| S |
-50 to +1760 |
0.5°C |
±2°C |
|---|
| B |
+50 to +1820 |
0.5°C |
±2°C |
|---|
| N |
-270 to +1300 |
0.1°C |
±.5°C |
|---|
|
MadgeTech RFC1000-IP69K can withstand wash down cycles using caustic chemicals, making it ideal for harsh environments. This model includes a high powered transceiver with an IP69K ingress protection rating.
| |
