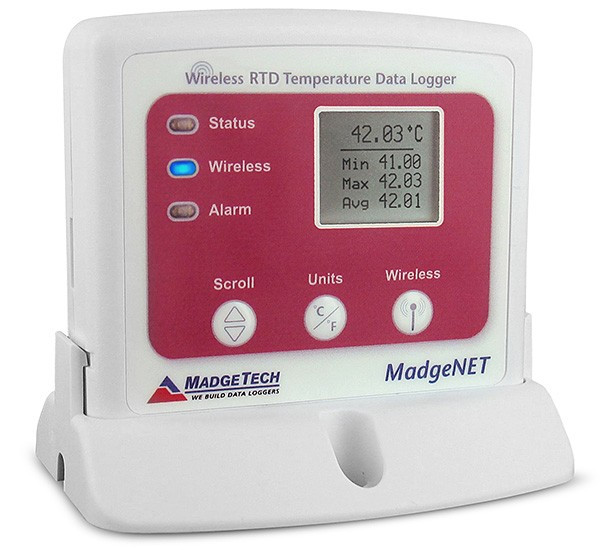

MadgeTech RFRTDTemp2000A Wireless Precision RTD Based Temperature Data Logger with LCD
|
Item Number: RFRTDTemp2000A
Manufacturer: MadgeTech
Part Number: RFRTDTemp2000A
* Whole number only
|
|
MadgeTech RFRTDTemp2000A Wireless Precision RTD Based Temperature Data Logger with LCD
The RFRTDTemp2000A is an RTD-based, wireless temperature data logger with display. This data logger is ideal for applications that require high accuracy temperature monitoring such as within laboratories, pharmaceutical and biotech industries. The RFRTDTemp2000A accepts 2, 3 or 4 wire 100Ω platinum RTD’s and features a device accuracy of +/-0.5°C. Starting, stopping and downloading from the device are all performed wirelessly using the RFC1000 wireless transceiver, allowing the user to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at periodic intervals.
The convenient digital display provides the current reading as well as minimum, maximum and average statistics for a convenient snap shot of the logged data. For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm setting. Through the software, email and text message alarms can also be sent.

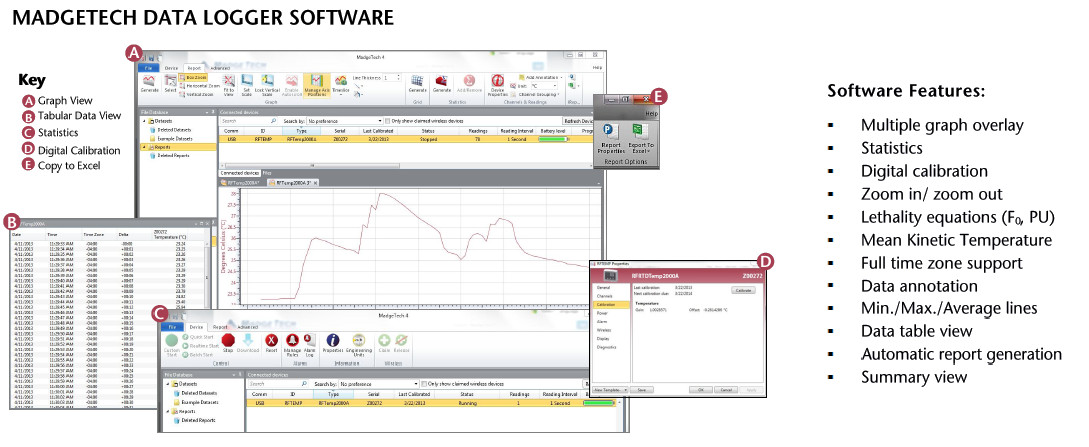

The RFRTDTemp2000A can be used as a single, wireless data logging system, yet can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional MadgeTech wireless loggers and transceivers may be required). The RFRTDTemp2000A utilizes the new MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
The RFRTDTemp2000A is available with an extended warranty.
Features
- Wireless Two-Way Communication
- View Data in Real-Time
- Battery Life Indicator
- 5 year battery life at 15 Minute Reading Rate
- Audible alarm and LED Alarm Indicator
- Wall or Table Mount Included
- Field Upgradeable
- +/- 0.05C Device Accuracy
- Direct USB Interface
- NIST Traceable
  Technical Specifications
TEMPERATURE
| Temperature Sensor |
External 100 Ohms Resistance Temperature Detector (RTD) |
|---|
| Temperature Range |
-200°C to +850°C |
|---|
| Temperature Resolution |
0.001°C |
|---|
| Temperature Calibrated Accuracy |
±0.01° Ohms (±0.05°C) |
|---|
| Internal Channel Temperature Sensor |
Internal Semiconductor |
|---|
WIRELESS
| RF Carrier Frequency |
2.45GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|
| Output Power |
+0dBm typical |
|---|
| Receiver Sensitivity |
-95dBm typical |
|---|
| Typical outdoors Line of sight |
Up to 2000' |
|---|
| Typical Indoors line of sight |
Up to 500' |
|---|
GENERAL
| Memory |
16,128 readings per channel |
|---|
| Reading Rate |
1 reading every second up to 1 reading every 24 hours |
|---|
| Baud Rate |
250,000 |
|---|
| LED Indicators |
Green, Blue & Red |
|---|
| Battery Life |
3 years (at a 1 minute reading rate) |
|---|
| Material |
ABS plastic |
|---|
| Dimensions |
3.0" x 3.5" x 0.95" (76.2mm x 88.9mm x 24.1mm) - Data logger only |
|---|
| Operating Environment |
-20~+60°C, 0~95%RH non-condensing |
|---|
| Required Interface Package |
RFC1000 |
|---|
| Approvals |
US(FCC), CA(IC), CE |
|---|
|
MadgeTech RFC1000 features a 7" pivoting external antenna, which increases the transmission distance and provides greater signal strength.
|
MadgeTech RFC1000-IP69K can withstand wash down cycles using caustic chemicals, making it ideal for harsh environments. This model includes a high powered transceiver with an IP69K ingress protection rating.
|
MadgeTech 4 Secure Data Logging Software and IQ/OQ/PQ Validation Package aids in 21 CFR Part11 requirements and helps to ensure data integrity with step by step IQ/OQ/PQ protocols.
| |
