MadgeTech PR140 Autoclave Pressure Data Logger
|
Item Number: PR140
Manufacturer: MadgeTech
Part Number: PR140
Product Options
* denotes required field
MadgeTech PR140 Fitting Option*
You must select an option for 'MadgeTech PR140 Fitting Option'.
MadgeTech PR140 Calibration Option
MadgeTech PR140 Accessory Option
* Whole number only
|
|

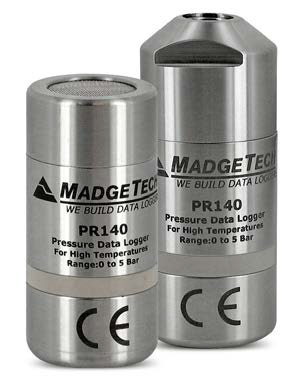

MadgeTech PR140 Autoclave Pressure Data Logger
The PR140 is a pressure data logger designed for use in autoclave validation and mapping. This rugged data logger can withstand temperatures up to 140°C and is completely submersible (IP68).
The PR140 is built with a precision stainless steel pressure gauge. The data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from 20°C to +140°C(68°F to 284°F). The PR140 can be programmed to take readings as often as once per second (1Hz), and has non-volatile memory that can store up to 32,700 measurements.

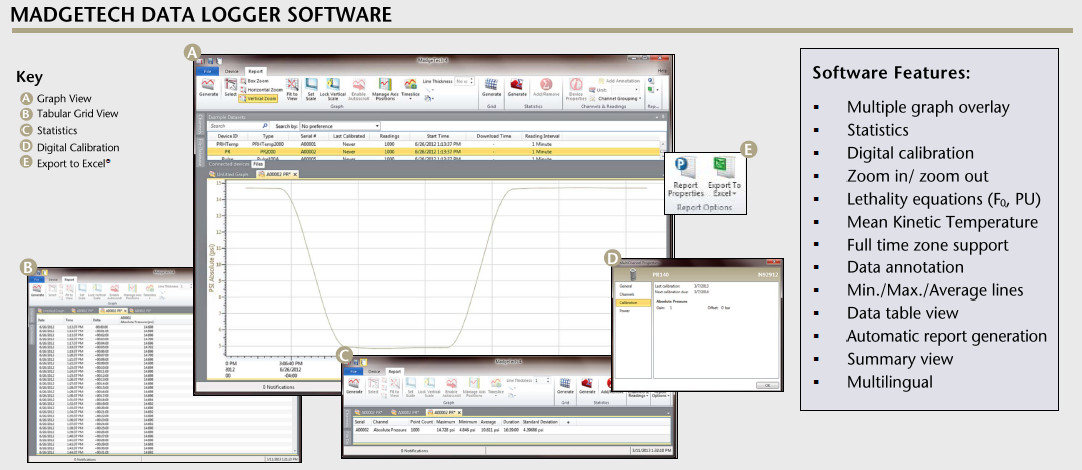

The PR140 data logger is easy to use. Simply place it in the IFC400 docking station, connect to a computer, and the device can be started, stopped or downloaded using the MadgeTech software. Graphical, tabular and summary data is provided for analysis and can be viewed in PSIA, mmHg, bar, Torr and kPa. The data can also be automatically exported to Excel® for further calculations.
Features
- Operates up to 140°C
- Submersible (IP68)
- N.I.S.T. Traceable
- User Replaceable Battery
- Rugged
- Programmable Start Time
- Engraved Label
- CE Compliant
- Software Battery Life Indicator
- 1/8" NPT Pressure Port
- Wrench Flats
Benefits
- Simple Setup and Installation
- Compatible with 1/8" NPT Adapters and Fittings
Applications
- Autoclave Validation and Mapping
- Canning and Cooking Pouches
- Pressurized Process Reactors
- Beverage Production, Including Wine and Soda
Dimensions Technical Specifications
PRESSURE
| Pressure Sensor |
Semiconductor Strain Gauge |
|---|
| Pressure Range |
0 to 5 Bar ( 0 to 72.5 PSIA) |
|---|
| Pressure Resolution |
0.1mBar (0.0015 PSIA) |
|---|
| Pressure Calibrated Accuracy |
±0.03 Bar (±0.435 PSI)
20°C to +140°C (68°F to 284°F) |
|---|
GENERAL
| Memory |
32,700 readings;
software configurable memory wrap |
|---|
| Reading Rate |
1 second to once every 24 hours, selectable in software |
|---|
| Baud Rate |
125,000 |
|---|
| Battery Life |
2 years typical (1 minute reading rate at 25°C/77°F) |
|---|
| Material |
Stainless Steel |
|---|

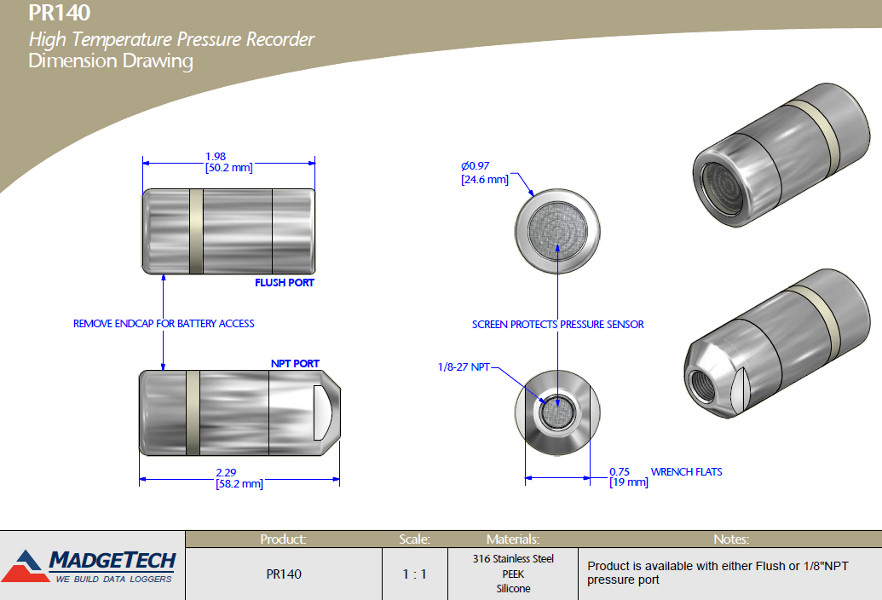

| Dimensions |
2.29" x 1.0" dia. (58.2mm 25.4mm dia.) |
|---|
| IP Rating |
IP68 |
|---|
| Submersible |
Yes |
|---|
| Operating Environment |
-20°C to +140°C (-4°F to +284°F),
0 to 100%RH
Note: The PR140 may be used above 60°C for up to 8 hours, per 24 hour period. |
|---|
| Approvals |
CE |
|---|
|
