MadgeTech HiTemp140 High Temperature Data Logger
|
Item Number: HiTemp140
Manufacturer: MadgeTech
Part Number: HiTemp140
Product Options
* denotes required field
Probe Length Selection*
You must select an option for 'Probe Length Selection'.
* Whole number only
|
|

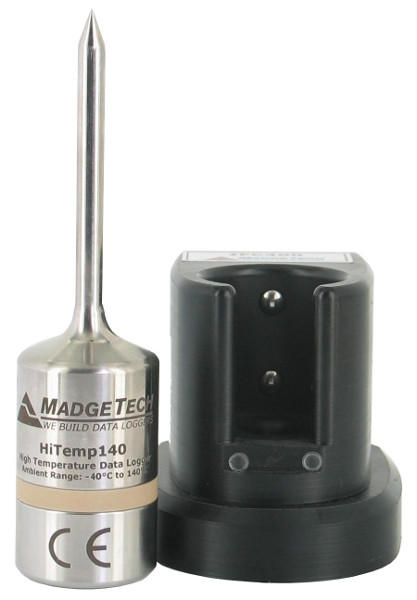

MadgeTech HiTemp140 High Temperature Data Logger
The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments. This stainless steel device is submersible, can withstand temperatures up to 140°C (284°F) and has an accuracy of +/-0.1°C (0.18°F).
The HiTemp140 can store up to 32,700 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260°C (500°F). Custom probe lengths up to 7" are available. The device records date and time stamped readings, and has non-volatile solid state memory that will retain data even if the battery becomes discharged.
Using the MadgeTech Software, starting, stopping and downloading the HiTemp140 is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.
The HiTemp140 is available with an extended warranty.
Features
- ±0.1°C (0.18°F) Accuracy
- Operates Up To 140°C (284°F)
- Submersible (IP68)
- N.I.S.T. traceable
- User Replaceable Battery
- Rugged
- Programmable start time
- Programmable stop time
- Engraved Label
- Probe Lengths Up To 7”
- Battery Life Indicator
Benefits
- Simple Setup and Installation
- Minimal Long-Term Maintenance
- Long-Term Field Deployment
Applications
- Autoclave Verification
- Implement HACCP Programs
- Food Preparation and Processing
- Environmental Studies
- Well Monitoring
- Dishwasher Testing
- Pasteurization

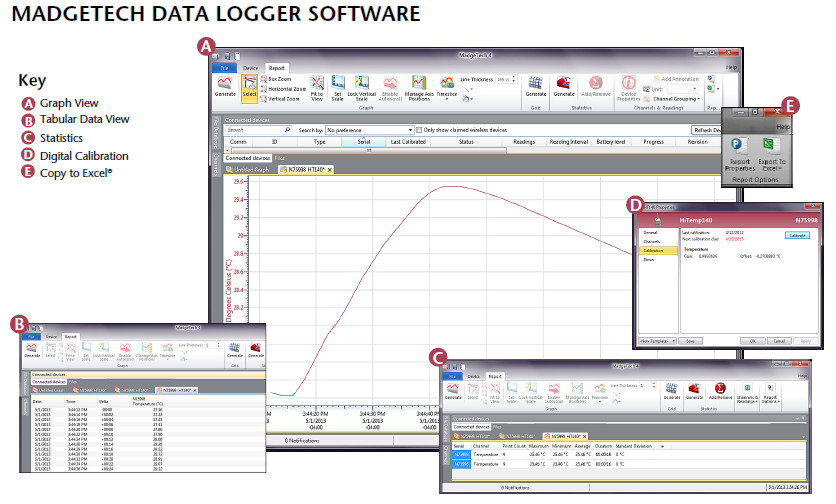

 Software Features
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Data table view
- Automatic report generation
- Summary view
- Multilingual

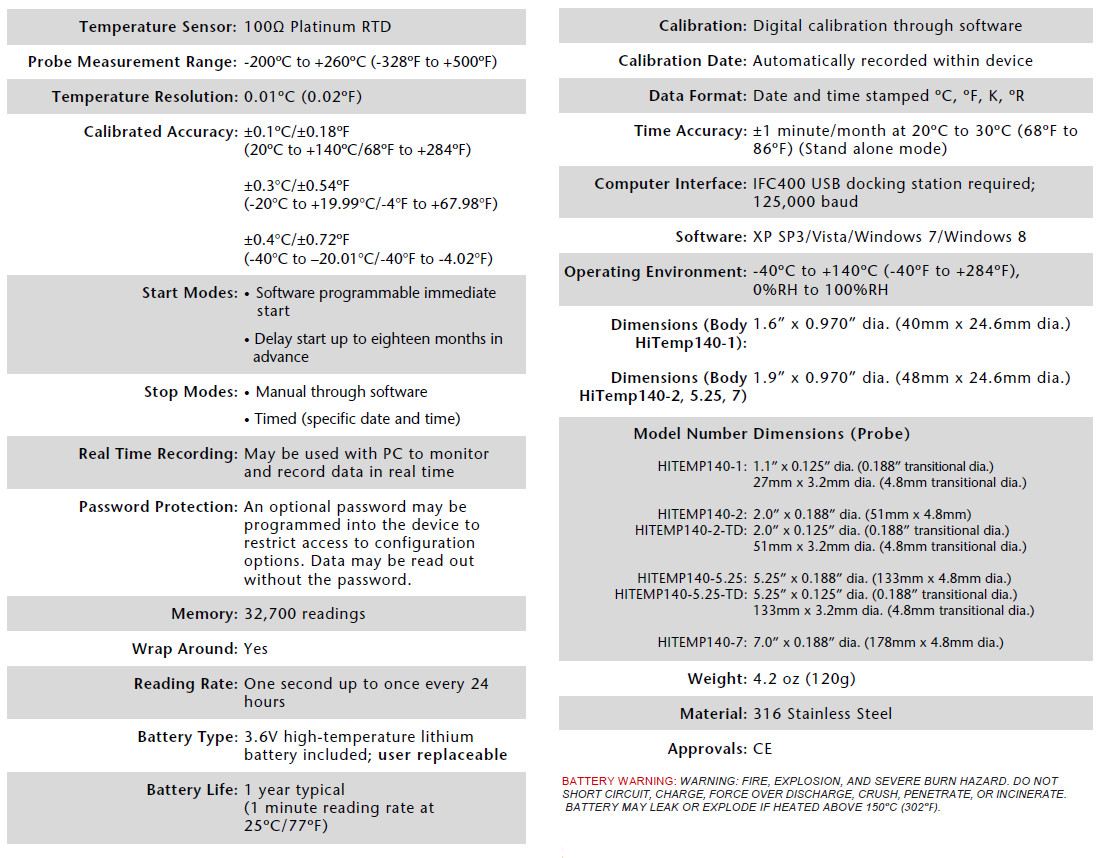

Technical Specifications
|
MadgeTech 4 Secure Data Logging Software and IQ/OQ/PQ Validation Package aids in 21 CFR Part11 requirements and helps to ensure data integrity with step by step IQ/OQ/PQ protocols.
|
MadgeTech ThermoVault140 is an extreme high temperature data logging system that can withstand temperatures up to 250°C when completely submerged and 350°C in dry heat applications (O-ring removed).
|
