MadgeTech HiTemp140-FP Data Logger
|
Item Number: HiTemp140-FP
Manufacturer: MadgeTech
Part Number: HiTemp140-FP
Product Options
* denotes required field
Probe Length Selection*
You must select an option for 'Probe Length Selection'.
Data Logger Options*
You must select an option for 'Data Logger Options'.
* Whole number only
|
|

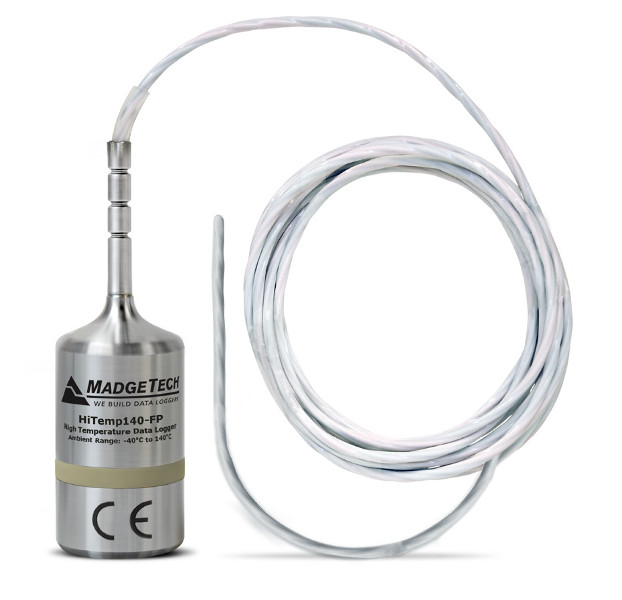

MadgeTech HiTemp140-FP Data Logger
The HiTemp140-FP is generally used for mapping, validation and monitoring of high temperature surfaces and environments. You can choose if you want either 36 inch or 72 inch flexible probe lengths. The flexible probe is covered with PFA protection and can withstand temperatures up to 260 °c with a precision of ±0.1 °c. The HiTemp140-FP probe is perfect for placement within small vials, tubing, test tube and other small diameter or delicate applications. The HiTemp140-FP records and stores up to 32,700 time stamped readings and is equipped with non-volatile solid state memory.
Features
- ±0.1 °C (0.18 °F) Accuracy
- Probe Operates up to 260 °C
- Submersible (IP68)
- NIST Traceable
- User Replaceable Battery
- Durable
- Programmable Start and Stop Time
- Two probe lenths, 36 inches and 72 inches
- Battery life indicator
Benefits
- Simple Setup and Installation
- Minimal Long-Term Maintenance
- Long-Term Field Deployment
Applications
- Autoclave Verification and Mapping
- Steam Sterilization
- Lyophilization
- Monitoring High-Temperature Surfaces
- Container Mapping
- Measurements Inside Small Vials and Tubing

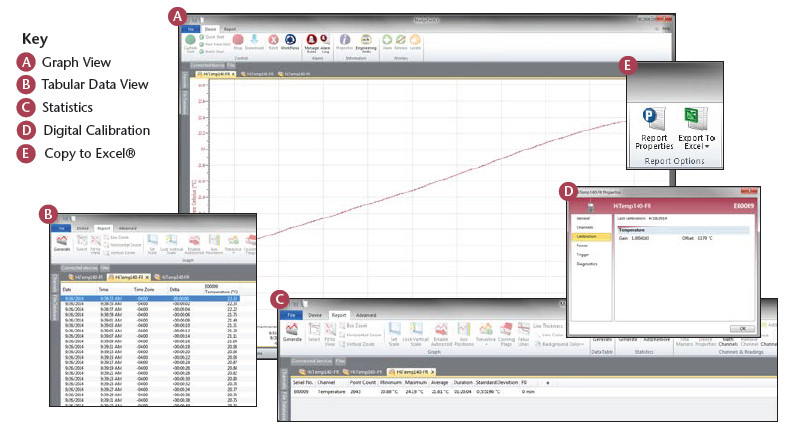

Software
Software Features
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Data table view
- Automatic report generation
- Summary view
- Multilingual

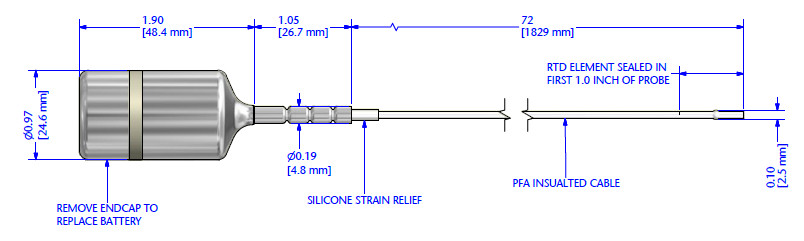

Dimensions
 HITEMP140-FR Specifications
Temperature
| Temperature Sensor: |
Flexible RTD Probe |
| Probe Measurement Range: |
-60 °C to +260 °C (-76 °F to 500 °F) |
| Temperature Resolution: |
0.01 °C ( 0.02 °F) |
| Calibrated Accuracy: |
±0.1 °C ( 0.18 °F) |
General
| Reading Rate: |
1 reading every 0.25 seconds up to 1 reading every 24 hours |
Memory:
|
32,767 readings |
| Start Modes: |
• Software programmable immediate start
• Delay start up to 18 months in advance |
Stop Modes:
|
Manual or Timed (specific date and time) |
| Real Time Recording: |
May be used with PC to monitor and record data in real time |
| Password Protection: |
An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password. |
| Number of Readings in Trigger Settings Mode: |
10,922 readings |
Trigger Settings:
|
High and Low limits may be set. Once data meets or exceed
sets limits, the device will record to memory. Bi-level start and
stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers. |
| Wrap Around: |
Yes |
| Battery Type: |
3.6V high-temperature lithium battery included; user replaceable |
| Battery Life: |
1 year typical
(1 minute reading rate at 25 °C/ 77 °F) |
| Calibration: |
Digital calibration through software |
| Calibration Date: |
Automatically recorded within device |
| Data Format: |
Date and time stamped °C, °F, °R, K, |
| Time Accuracy: |
• 1 minute/month at 25 °C (77 °F)
• Extended Operation:
±20 minutes/month at 140 °C (±450 ppm)
|
| Computer Interface: |
IFC400 or IFC406 USB docking station required; 125,000 baud |
Operating System
Compatibility: |
XP SP3/Vista/Windows 7/Windows 8 |
| MadgeTech Software Compatibility: |
• MadgeTech Standard Software version 4.2.1.1
• MadgeTech Secure Software version 4.2.0.1 or later
|
| Operating Environment: |
-40 °C to +140 °C (-40 °F to +284 °F)
0 %RH to 100 %RH |
| IP Rating: |
IP68 |
| Dimensions (body): |
2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm) |
| Dimensions (probe): |
• HiTemp140-FP-36:
36 in x 0.10 in (914 mm x 2.5 mm)
• HiTemp140-FP-72:
72 in x 0.10 in (1829 mm x 2.5 mm) |
| Weight: |
85 g (3 oz) |
| Materials: |
• Body: 316 Stainless Steel
• Probe: PFA Insulated Cable |
| Approvals: |
CE
|
BATTERY WARNING: WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT
CIRCUIT, CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE, OR INCINERATE. BATTERY
MAY LEAK OR EXPLODE IF HEATED ABOVE 150 ºC (302 ºF).
|
