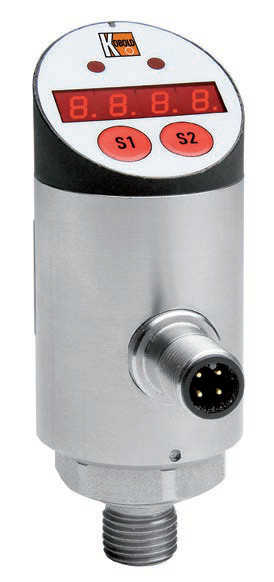

Kobold PSC Digital Electronic Pressure Transmitter & Switch
The KOBOLD PSC pressure sensor is designed for both pressure monitoring and optionally, continuous pressure measurement within one device. The user friendly design of the PSC allows simple switchpoint or switchpoint/transmitter programming without actual system pressurization. The selectable PNP/NPN transistor output is capable of switching currents up to 500 mA. Each switch is fully programmable, including: reset point, switch type, and switching function. Analog current and voltage output options are available for remote monitoring of system pressures. The ceramic or thin-film measuring cells give the PSC excellent repeatability and longevity, even with wide pressure variations. The high quality stainless steel housing makes it well suited for industrial environments.
Features
- Measuring Range: Vacuum, Compound, and Positive Pressures up to 10000 PSIG
- Accuracy: 1.0% of Full Scale
- Max. Temperature: 176 °F
- Process Connection: 1/4" NPT, 1/2" NPT, G 1/4, or G 1/2
- Four Digit LED Rotatable Display
- Easy 2 Button Programming
- Integrated Password Protection
- Dual NPN/PNP Open Collector, NPN/PNP Open Collector & 4...20mA Output, or NPN/PNP Open Collector & 0...10VDC Output
- Price includes 4-pin micro-DC mating cable (P/N: 807.037)

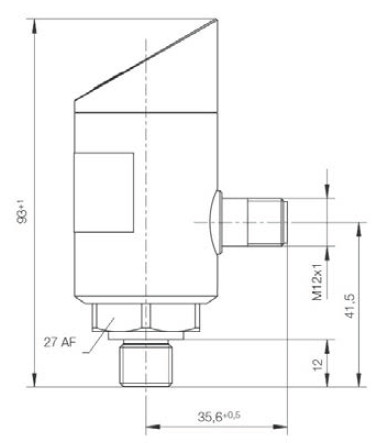

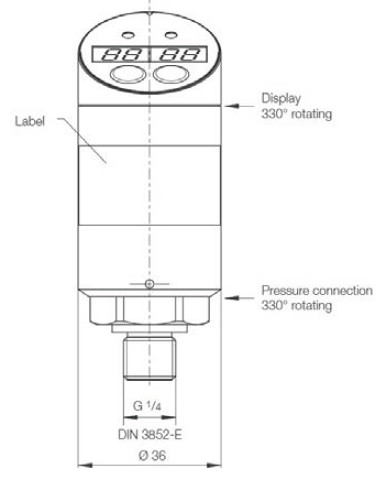

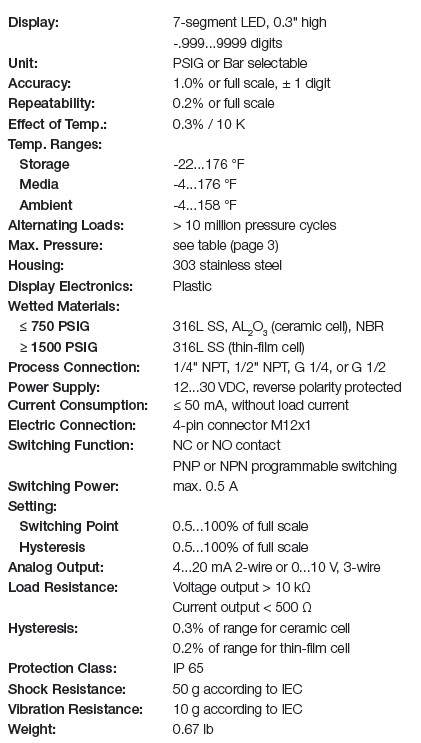

Dimensions  Technical Specifications
|
