Kobold PDL-11 Electronic Pressure Switch
|
Item Number: PDL-11
Manufacturer: Kobold Instruments, Inc.
Part Number: PDL-11
Product Options
* denotes required field
Output Options*
You must select an option for 'Output Options'.
Connection Options*
You must select an option for 'Connection Options'.
Pressure Range Selection*
You must select an option for 'Pressure Range Selection'.
* Whole number only
|
|

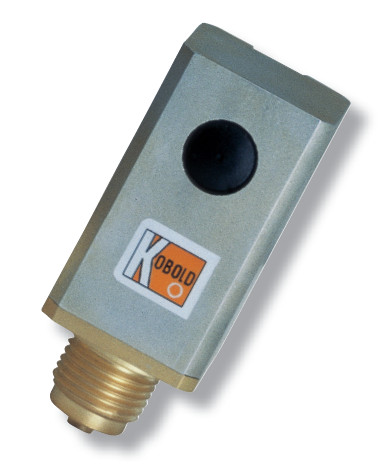

Kobold PDL-11 Electronic Pressure Switch
The Kobold PDL-11 pressure switch is a temperate configuration accessible with switch outputs that can be adjusted by simply turning a screw. With the assistance of a spring-helped measuring component and through the utilization of a Hall-Effect sensor, the PDL switch can provide up to a maximum of two switching outputs for a given pressure. The configured outputs are offered in an N/O or N/C electrical configuration. The PDL's smaller size, hearty development and wide adjustable pressure range make it the perfect pressure switch for OEM usage.
Features
- Switching Range: 1.45...15 psi (0.1...1 bar) to 870...8702 psi (60...600 bar)
- Max. Temperature: 80 °C
- Connection: 1/4" NPT or G 1/4
- Material: Brass
- Repeatability: ≤ 1% of Full Scale
Dimensions (mm) Technical Specifications
|
