Kobold PDD Digital Pressure Switch
|
Item Number: PDD
Configuration: -N4
Manufacturer: Kobold Instruments, Inc.
Part Number: PDD

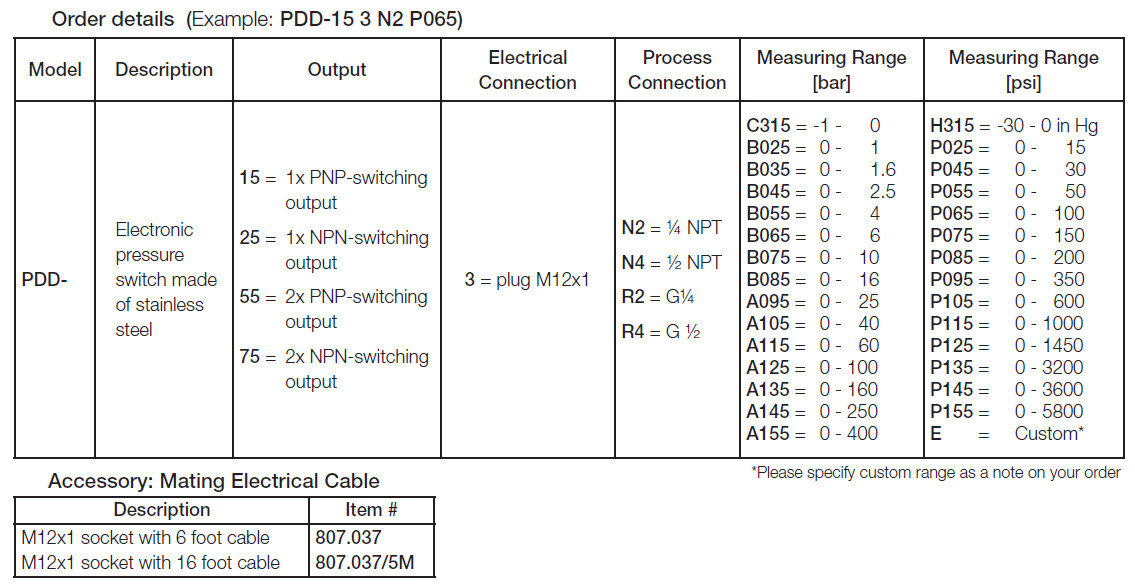

Product Options
Kobold PDD Model Output Options
Kobold PDD Process Connection Options
Kobold PDD Measuring Ranges (psi)
Kobold PDD Accessory: Mating Electrical Cable Options
* Whole number only
|

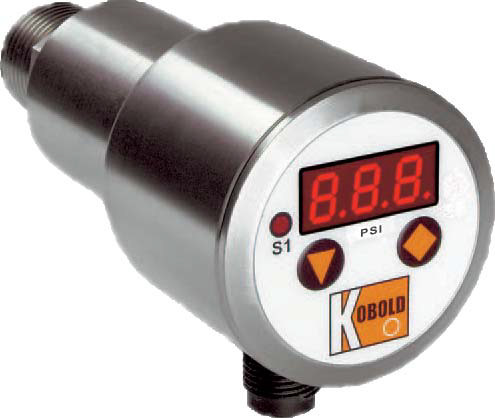

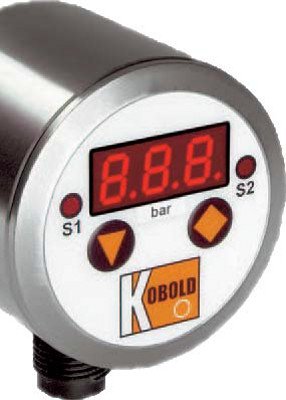

 Kobold PDD-15 & 25 Digital Pressure Switch Kobold PDD-55 & 75 Digital Pressure Switch |
|
Kobold PDD Digital Pressure Switch
The PDD series digital pressure switch integrates the latest solid state sensing technology into a very versatile, simple to operate package. Programming features include set point, reset point, window mode, pulsation dampening, switch logic, and user settable lockout code. The ceramic sensing system and solid state transistor switch ensure an exceptionally long cycle life with virtually no calibration drift. These features along with the compact, robust stainless steel housing make the PDD an ideal choice for OEM applications.
Features
- Measuring range: -30...0" Hg to 0...5800 psi or -1...0 bar to 0...400 bar
- Temperature: max. 176°F
- Accuracy: ±0.5% of full scale (±1.0% of full scale for ranges ≤ 30 psi)
- Housing/fitting material: Stainless Steel
- Connection: ¼ NPT, ½ NPT, G ¼, or G ½
 Applications
- Compressor Monitoring
- Machinery Industry
- Installations
- Pumps

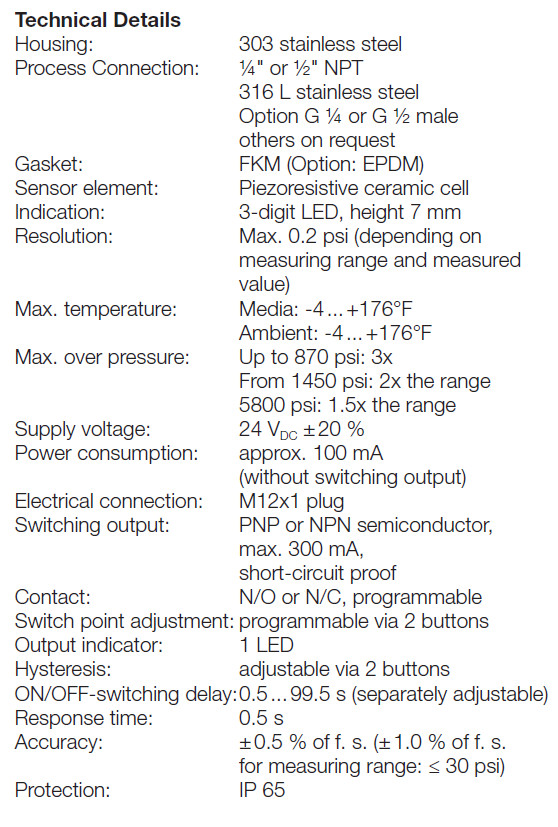

Technical Specifications
|
