Kobold NK-8000 Ultrasonic Level Switch

Our Price: $400.00
Item Number: NK-8000
Manufacturer: Kobold Instruments, Inc.
Part Number: NK-8000

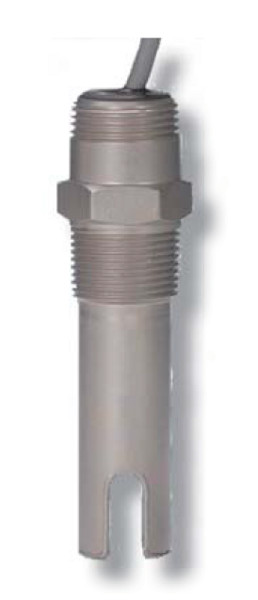

Kobold NK-8000 Ultrasonic Level Switch
Kobold NK-8000 Ultrasonic Level Switch

The KOBOLD NK-8000 ultrasonic level switch is a direct replacement for mechanical float type liquid level devices. It provides reliable operation in virtually any free-flowing liquid and eliminates failure caused by the finite operational life inherent in mechanical float designs. The solid-state integral electronics are fully sealed with epoxy. Rugged and reliable, the NK-8000 is designed for years of maintenance-free service.

Features
  • Proven Ultrasonic Technology
  • Direct Replacement for Mechanical Float Type Liquid Level Devices
  • Solid State Integral Electronics
  • Designed for Years of Maintenance-Free Service
  • Max. Pressure: 1000 PSIG
  • Output: SPDT Relay
  • Easy to Install
Applications
  • Pump Protection
  • Storage Tanks
  • Compressors
  • Coolant Reservoirs
  • Boiler Water Cut-off
  • Chillers
  • Hydraulic and Lube Oil Reservoirs

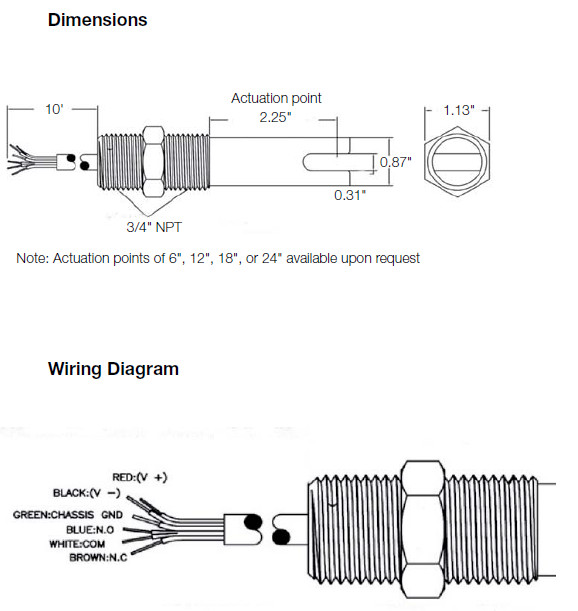

Technical Specifications

Repeatability: 2 mm or Better
Switching Delay: 0.5 seconds
Input Voltage: 5...30 VDC
Input Current: 100 mA
Output: SPDT Relay
   Max. Current: 1 Amp
   Max. Voltage: 30 VDC
Connection: 3/4" NPT
Protection: Transient, Reverse Polarity
Sensor Material: 316L Stainless Steel
Max. Temperature: 176 °F (80 °C) Standard
212 °F (100 °C) upon request
Max. Pressure: 1000 PSIG
Cable Length: 10 feet standard, longer upon request
