Kobold NBK-M Economical Level Indicator
Our Price: Call or Chat for Pricing Quote
Item Number: NBK-M
Manufacturer: Kobold Instruments, Inc.
Part Number: NBK-M
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
* Whole number only
|
|
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Kobold NBK-M Economical Level Indicator
Click here to download the NBK Configuration Form
The Mini-NBK bypass level indicator provides many of the unique features of our standard NBK series but at a fraction of the cost. Like its predecessor, the Mini-NBK uses KOBOLD’s revolutionary ring magnet float design allowing the user full flexibility in adding roller indicators, switches and other options anywhere on the periphery of the bypass tube.
The use of lighter gauge materials and a streamlined manufacturing process makes the Mini-NBK a very economical choice for low pressure level measuring applications.
Features
- 316 Stainless Steel Tube
- Maximum Pressure 580 PSIG
- Maximum Temperature 390 F
- Measuring Lengths to 9.8 ft.
- Optional Switches, Transmitters and Digital Displays Available
- Economical Rugged Design

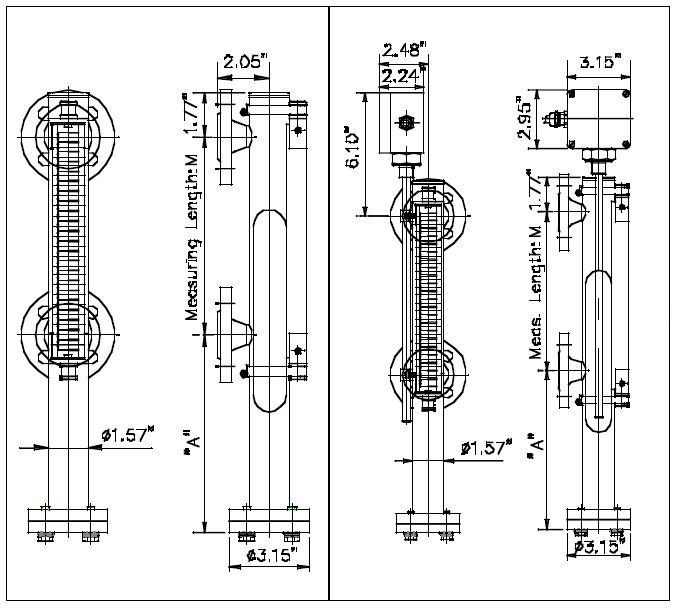

Dimensions Technical Specifications
| Max. Measuring Length |
9.8 Feet |
| Process Fittings |
½"-1" NPT, ½"-1" ANSI or DIN Flanges |
| Material |
316 SS Tube & Fittings, Titanium Float |
| Max. Pressure |
580 PSIG |
| Max. Temperature |
390°F (Option Dependent) |
| Transducer Accuracy |
Max. ±0.04" (with Option "T") |
| Available Options |
Switches, Transmitters, Scales |

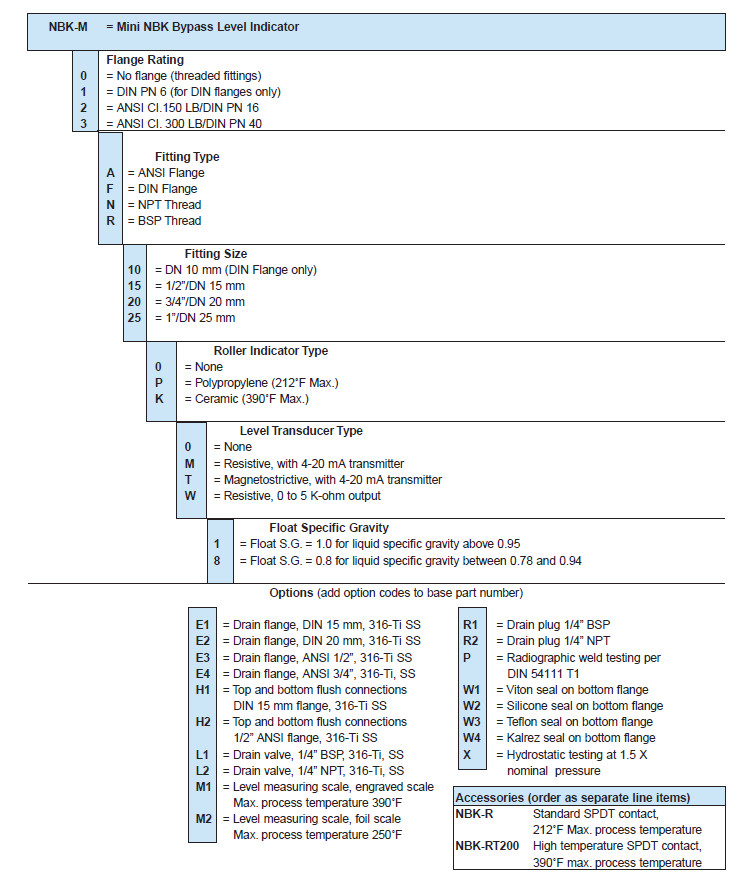

  Order Information
|
