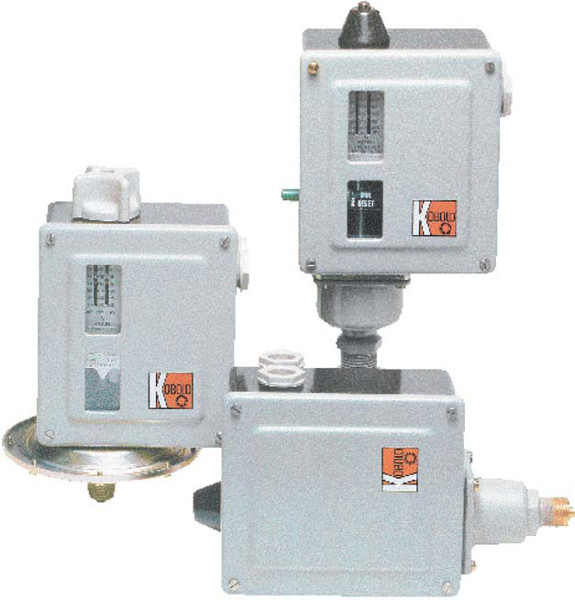

Kobold KRT Pressure Switch
The KRT is a pressure operated switch suitable for industrial or marine gas and low viscosity fluid applications. Selection includes absolute, relative and differential pressure switches with either fixed or adjustable hysteresis (dead band). In keeping with our philosophy of robust design, the KRT is built according to IP66 (NEMA 4) specifications or IP54 (NEMA 3R) for units with an external reset feature. The KRT is ideal for applications such as pump protection, safety pressure control for steam boilers, as well as more conventional use as a regular pressure switch. As with our KPS/KAS line, installations include manufacturing plants, diesel units, compressors of all types, power stations and ships.
Features
- Industrial and Marine Applications
- NEMA 4 or 3R Enclosure
- Rugged and Reliable
- Differential Pressure Units Available
Technical Specifications
| Ranges |
-1 to 0 Bar to 10-30 Bar |
| Fitting |
1/4" FNPT via Brass adapter (G 3/8A Native Fitting) |
| Wetted Materials |
Brass, SS & Carbon Steel |
| Media Temperature Range |
-40 to +302°F (most models) |
|
