Kobold KPW Submersible Pressure Transducer

Our Price: $773.00
Item Number: KPW
Manufacturer: Kobold Instruments, Inc.
Part Number: KPW

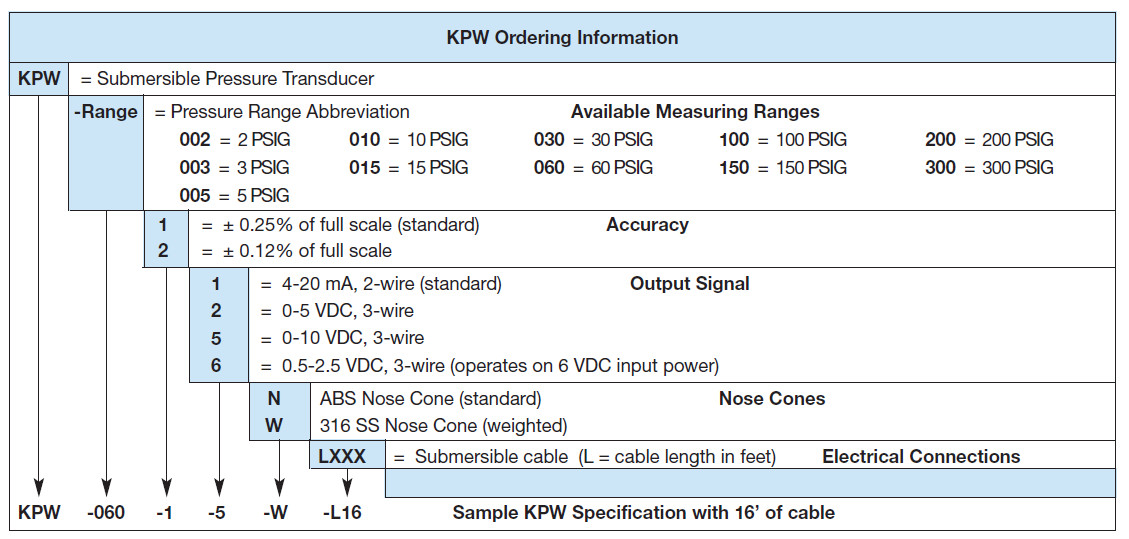

Product Options

* denotes required field

Range Selection*
Accuracy Selection*
Output Signal Selection*
Nose Cone Selection*
Enter your Submersible cable Length (L = cable length in feet) Electrical Connections*
$5 per Foot
Accessory Options

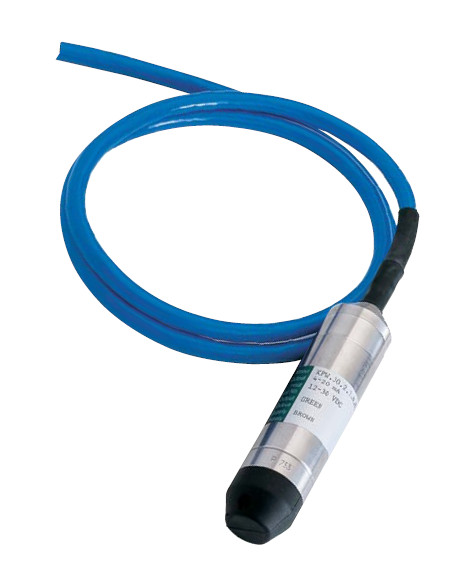

Kobold KPW Submersible Pressure Transducer
Kobold KPW Submersible Pressure Transducer

KOBOLD KPW Series submersible pressure transducers provide superior liquid level and depth measurement performance at affordable prices. Using the same pressure-sensing technologies and advanced manufacturing techniques as the rest of our KP line, the KPW Series submersible pressure transducer can achieve accuracies of ±0.12% at pressures to 300 PSIG, all the while providing our typical high shock resistance, excellent long-term sensor stability and CE compliant noise immunity. In addition to these features, the KPW Series submersible pressure transducer helps prevent common installation problems such as reverse-polarity wiring, overvoltage and short circuiting. Our 100% inspection and testing program ensures trouble-free installation. The KPW Series submersible pressure transducer features a 316 stainless steel body and submersible cable connection. The standard nose cone is ABS plastic, with an optional weighted, 316 stainless steel nose cone.


Features
  • Advanced Piezoresistive Sensing Technology
  • Variety of Output Signal
  • CE EMI Compliant
  • High Overpressure Protection
  • Fast Response Time
  • Stainless Steel Construction
  • Submersible Cable Connection Standard
Applications
  • Irrigation
  • Food and beverage
  • Waste water
  • Water distribution
  • Level and depth
  • Bore hole
  • Wells
  • Offshore
  • Research and Development
  • Marine

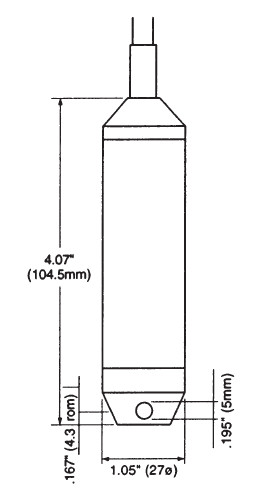

Dimensions

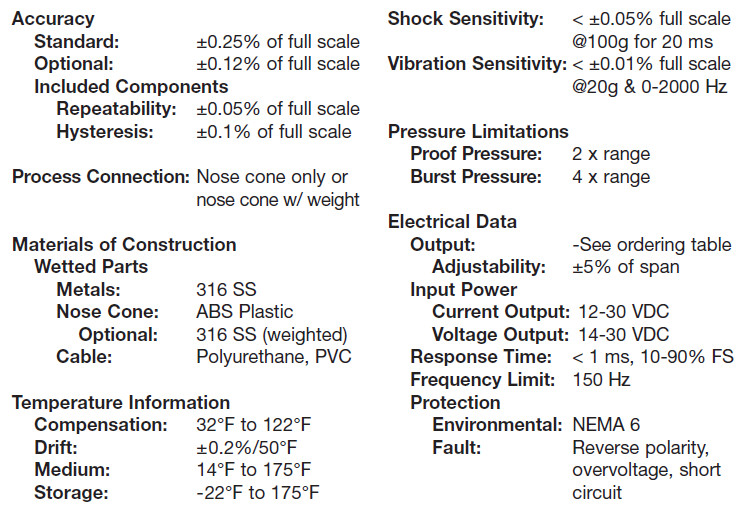

Technical Specifications
