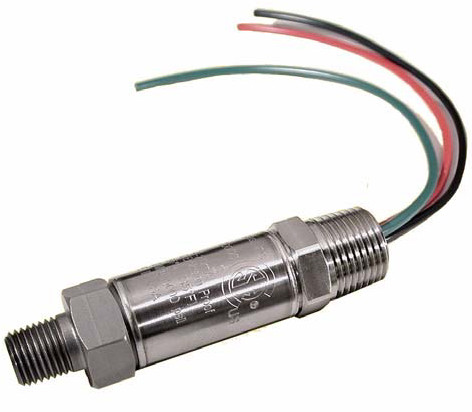

Kobold KP46 Explosion-Proof Pressure Transmitter

     The KOBOLD KP46 series explosion-proof pressure transmitter is approved for use in hazardous locations per CSA standard 30 and U.L. standard 1203 for Class 1, Division 1 and Division 2 locations. The wetted parts are all 316L stainless steel for compatibility with a wide variety of media. Wetted materials and construction comply with NACE MR0175. Other wetted materials such as 17-4 PH stainless or inconel are available on request. The fitting and sensing diaphragm are machined out of a single piece of material so there are no welds, seams or o-ring seals resulting in excellent long term performance and stability.

The case is factory sealed making the KP46 series very rugged with excellent shock and vibration resistance. The KP46 is perfect for explosion proof applications where both price and performance are critical.

Features

• Pressure Ranges from 0-50 PSIG through 0-10,000 PSIG
• Approved Explosion-Proof for Class 1, Div. 1 and Class 1, Div. 2 Hazardous Locations
• One Piece 316L Stainless Steel Sensing Diaphragm With No Welds, O-rings or Seams
• Rugged Factory-Sealed Case Withstands Harsh Environments, Shock and Vibration
• Typical Applications Include Natural Gas Compressors, Pipeline Equipment, Well-Head Pressure and Oil Platform Equipment
