Kobold KFG-1000 Low Volume, Rotating Vane Flowmeter (Air, Ryton)
|
Item Number: KFG-1000
Manufacturer: Kobold Instruments, Inc.
Part Number: KFG-1000
Product Options
* denotes required field
Kobold KFG-1000 Model Range Selection*
You must select an option for ' Kobold KFG-1000 Model Range Selection'.
* Whole number only
|
|
Kobold KFG-1000 Low Volume, Rotating Vane Flowmeter (Air, Ryton)
KOBOLD KFF/KFG Series turbine flow sensors and flowmeters can measure very low flow rates. They are suitable for a wide variety of industrial, commercial and laboratory flow applications involving media transparent to the near-infrared spectrum. The low volume flow sensor uses a pelton-type turbine wheel and photodiodes to generate an electrical signal linearly proportional to flow rate. This output signal (accessible via the included cable) can be either a pulse or 0–5 VDC analog output usable with a variety of data acquisition equipment. KFF/KFG Series low volume turbine flow sensors and flowmeters are available in Ryton®, brass or PTFE (Teflon®) construction for use in a wide variety of process situations. Our PTFE flow sensors and flowmeters come standard with both analog (0-5 VDC) and frequency outputs. The frequency output on other models is optional. If price is a key issue, the standard PTFE/Kalrez® fittings on KFF/KFG-1500 Series pelton wheel flow sensors can be replaced with PVDF (a.k.a. Kynar®)/Viton® for a slight cost reduction. Contact your factory representative for details.
Features
- Linear 0–5 VDC Output Signal
- Highly Repeatable
- Very Stable
- No Zero Drift
- Wide Variety of Wetted Materials
- Standard 12 VDC Input Power
- Liquid or Gas Versions

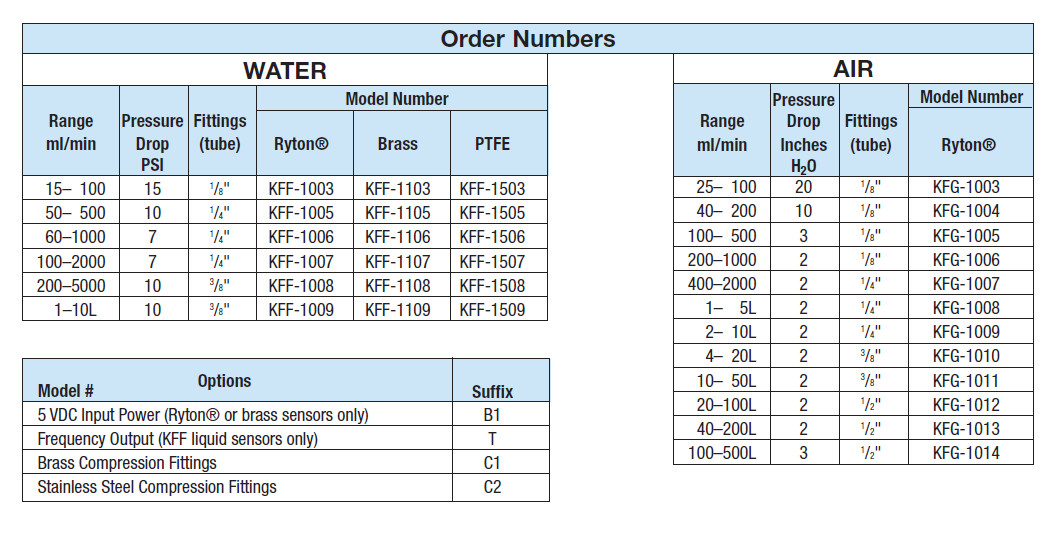

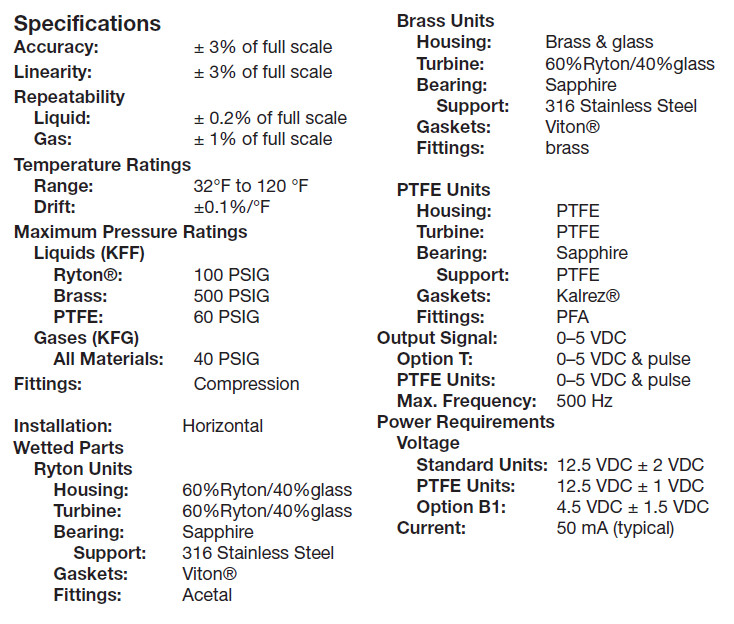

Technical Specifications
|
Kobold KFF-1000 ranges from 15 to 5000 ml/min, and KFF-1009 range is 1-10L ml/min.
|
Kobold KFG-3000 ranges from 20 to 2000 ml/min, and KFG-3008 to KFG-3014 ranges from 1 to 500L ml/min.
|
Kobold KFF-3000 ranges from 13 to 5000 ml/min, and KFF-3009 range is 1000-10,000 ml/min.
|
Kobold KFF-1100 ranges from 15 to 5000 ml/min, and KFF-1109 range is 1-10L ml/min.
|
Kobold KFG-3100 ranges from 20 to 2000 ml/min, and KFG-3108 to KFG-3109 ranges from 1 to 10L ml/min.
|
Kobold KFF-3100 ranges from 13 to 5000 ml/min, and KFF-3109 range is 1000-10,000 ml/min.
|
Kobold KFF-1500 ranges from 15 to 5000 ml/min, and KFF-1509 range is 1-10L ml/min.
| |
