Kobold KAL Thermal Flow Switch

Our Price: $145.00
Item Number: KAL
Manufacturer: Kobold Instruments, Inc.
Part Number: KAL

Product Options

* denotes required field

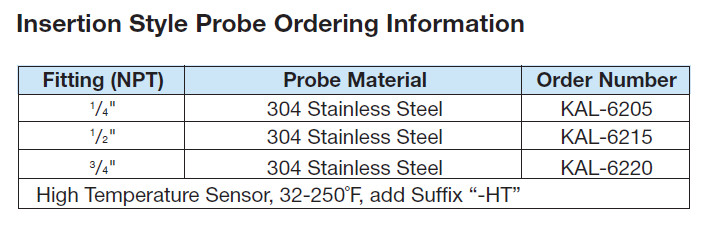

Kobold KAL Insertion Style Probe Options*

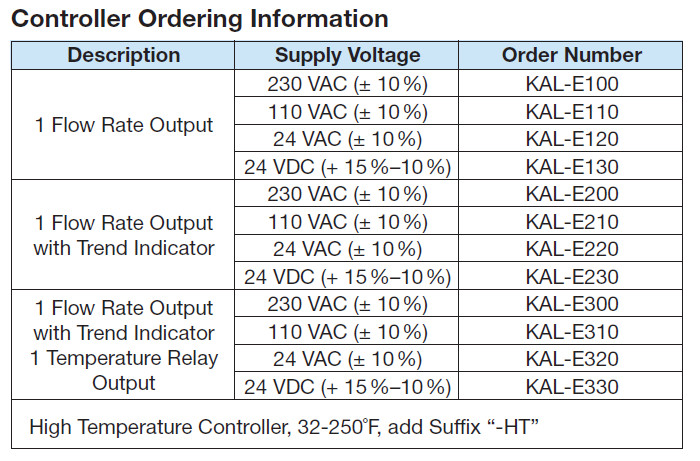

Kobold KAL Controller Options (Optional)
High-Temperature KAL-E Only Option
Kobold KAL (Controller is Optional)

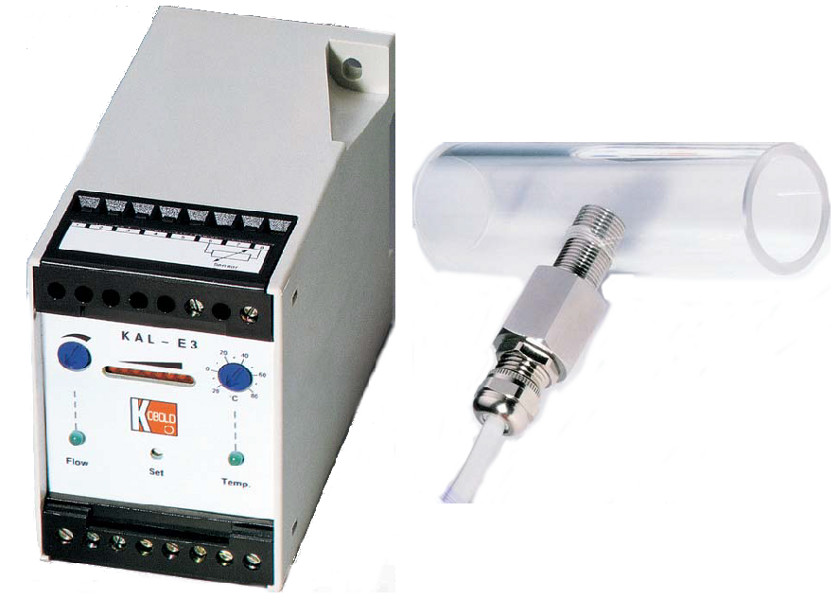

Kobold KAL Temperature Compensating Thermal Flow Switch for Liquid

     The KAL electronic flow switch continuously monitors the flow of liquid media. It can be used wherever flows must be monitored with a minimal loss of pressure. The KAL’s one-piece, stainless steel sensor has no moving parts making the KAL very reliable. High strength is another advantage inherent in this design allowing use at high pressures, and virtually eliminating any chance of mechanical damage.


Features

  • Optimal Temperature Compensation
  • Simultaneous Monitoring of Temperature and Flow
  • Remote Probe Allows Installation with Minimal Clearance
  • Can be Used with Extremely Low Velocities
  • No Moving Parts
  • Extremely Low Pressure Loss
  • Easy to Operate
  • Insensitive to Dirt

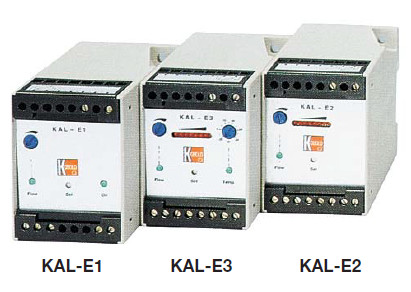

KAL Controllers



Three units are available. Each is compatible

with the full series of sensors.
Electronic circuitry is located in a
standard DIN housing (NEMA 1) for quick
installation on terminal rails.

KAL-E100 Series
The KAL-E100 is equipped with a flow
rate sensitive, isolated SPDT relay. The
relay status is indicated by means of a
green LED.
KAL-E200 Series Same as the KAL-E100, but with a trend
indicator for flow rate and switch point.




KAL-E300 Series
Same as KAL-E200 but with a
temperature switch. In addition to
monitoring the flow, this model can be
used to monitor the temperature. The
specified alarm temperature can be from
0–176 °F.
SPDT relays are activated if the flow
drops below the specified flow velocity,
or if the temperature drops below the
specified temperature.

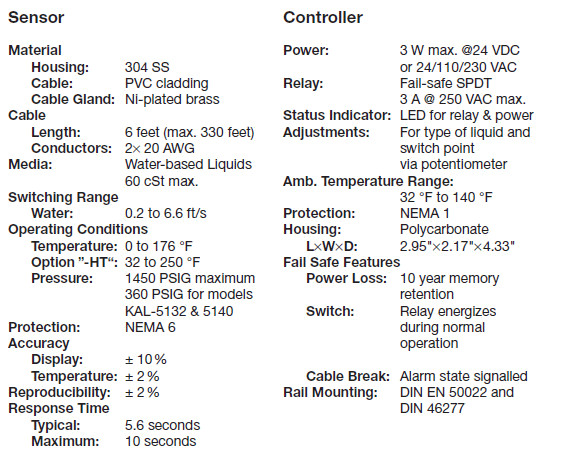

Technical Specifications
