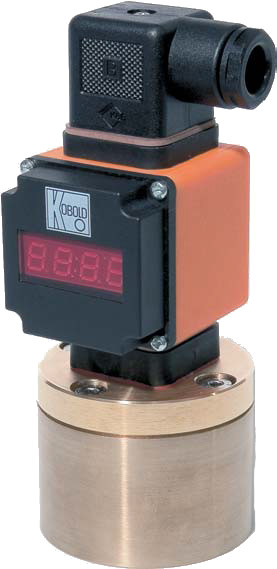

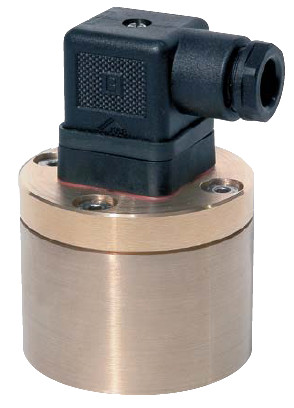

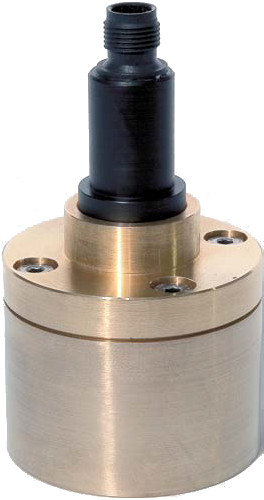

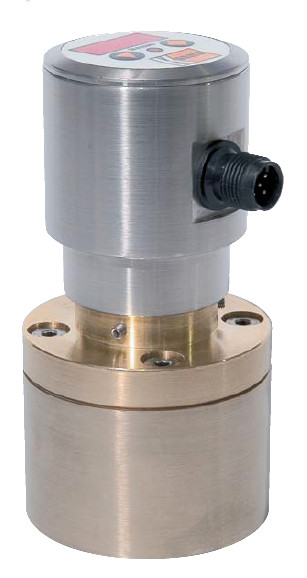

 Kobold DRZ with Output Type C3xx Kobold DRZ with OEM Pulse and Optional AUF-4000 Display Kobold DRZ with Output Type F3xx or L3xx Kobold DRZ with Output Type 0000 (OEM Pulse) |
|
Kobold DRZ Rotary Piston Flowmeter
The KOBOLD DRZ Series rotary piston positive-displacement flowmeter combines economy with high performance. The DRZ Series flowmeter is designed to measure any clean liquid with lubricating properties and a viscosity ranging from 5 to 100 centistokes. The unique design uses a single piston rotating on a camshaft to meter a very precise volume of liquid with each rotation of the piston. Piston rotation is detected by a Hall Effect sensor, and the signal is processed by electronics into a blind pulse output (PNP or NPN based on model ordered) or a full-featured controller with flow rate indication, analog output and switches. The rugged, economical brass body provides a pressure rating to 580 PSIG. The KOBOLD DRZ Series positive-displacement flowmeter has a low pressure drop of 20 PSI maximum.
Features
- For low to medium viscosity lubricating liquids
- Flow Range 1.6 to 110 GPH
- Accurate Measurements for Lubricating Media
- Economical Brass Construction
- ±1% of Reading Accuracy

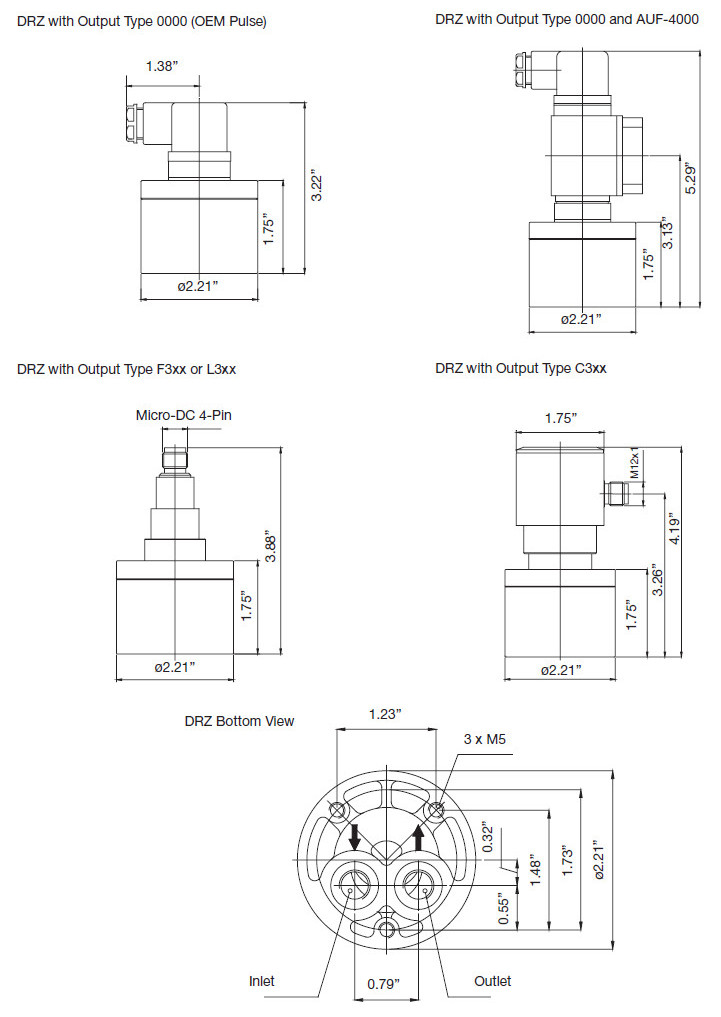

Dimensions
Technical Specifications
Area of Application: Low and medium
viscosity liquids
which have some
lubricating
properties
Measuring Range: 1.6-110 GPH
Max. Throughput: 160 GPH
Accuracy: ±1.0% of reading
Repeatability: ±0.2% of reading
Viscosity Range: 5-100 cSt
Process Temp.
Range: -4°F to +176°F
Ambient Temp.
Range: -4°F to +140°F
Max. Pressure: 580 PSIG
Max. Differential
Pressure: 20 PSI
Wetted Materials: Brass, aluminum,
Acetal, Viton
Req. Filtration: 150 mesh or better
Electrical Specifications
Output Type 0000 = OEM NPN Pulse
Power Requirement: 5-24 VDC
@10 mA Max.
Output: NPN Open
Collector
Max. Output Load: 15 mA
K-factor: 1633 pulses/gal.
Elec. Protection: NEMA 4X/IP65
Elec. Connection: DIN 43650 Plug
Note: May be combined with AUF-4000 to
provide LED display with 2-wire 4-20 mA
output
AUF-4000 pulse to 4-20 mA converter
with display
Power Requirement: 14-30 VDC
Input: Pulse
Output: 4-20 mA, 2-wire
Max. Output Load: 250 ohms
Elec. Protection: NEMA 4X/IP65
Elec. Connection: DIN 43650 Plug
Output Type F300 = PNP Pulse
Power Requirement: 24 VDC ±20%
@ 10 mA Max.
Output: PNP Open
Collector
Max. Output Load: 25 mA
K-factor: 1633 pulses/gal.
Elec. Protection: NEMA 4X/IP65
Elec. Connection: Micro-DC,
4 pin male |
Output Type F3X0 = PNP pulse with
frequency divider
Power Requirement: 24 VDC ±20%
@ 10 mA Max.
Output: PNP Open
Collector
Max. Output Load: 25 mA
Elec. Protection: NEMA 4X/IP65
Elec. Connection: Micro-DC,
4 pin male
Output Type L303, L343 = (0)4-20 mA
Power Requirement: 24 VDC ±20%
@ 10 mA Max.
Output: 3-wire 0-20 mA or
4-20 mA
depending on
model code
Max. Output Load: 500 ohms
Elec. Protection: NEMA 4X/IP65
Elec. Connection: Micro-DC,
4 pin male
Output Type C30M, C30R, C34N, C34P
compact electronics
Housing Material: 303 stainless steel
Power Supply: 24 VDC ±20%
Display: 3 digit LED
Output Types: Analog output
+1 switch or 2
switches based
on model code
Analog Output: 4-20 mA, 3-wire
Rloop<500 ohms
Switch: PNP or NPN
open collector,
300 mA max.
Elec. Protection: NEMA 4X/IP65
Elec. Connection: Micro-DC,
5 pin male |
|
