Kobold DKB Flow Indicator with Ball
|
Item Number: DKB
Manufacturer: Kobold Instruments, Inc.
Part Number: DKB
Product Options
* denotes required field
Kobold DKB-3100 & DKB-3200 Flow Rate Model Selection*
You must select an option for 'Kobold DKB-3100 & DKB-3200 Flow Rate Model Selection'.
* Whole number only
|
|

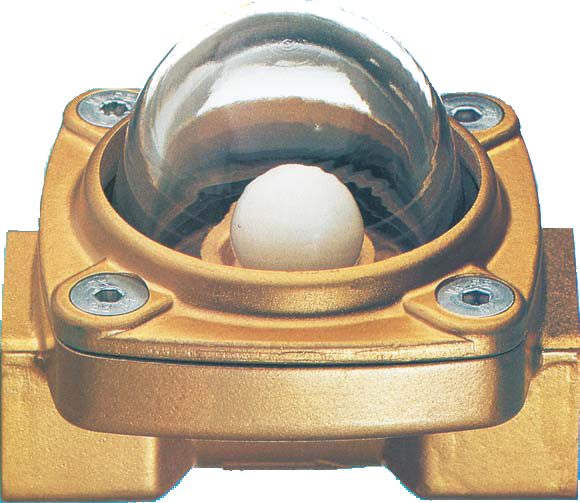

Kobold DKB Flow Indicator with Ball
The KOBOLD DKB Series visual flow indicator with ball is ideal for use in either air or liquid flow applications. The absence of wear components ensures high reliability in installations unsuitable for indicators using bearings with a rotating wheel or turbine. The bright float used in the DKB Series ball-type flow indicator is easily seen from elevated positions and when viewed from a distance. Our domed sight glass allows full 360° visibility from above.
Features
- Usable With Air
- Horizontal Installation Only
- Highly Visible
- Economical

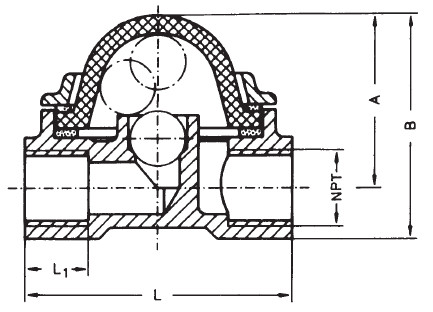

Dimensions
Technical Specifications
| Water Ranges |
0.03-1.8 GPM ... 0.08-16 GPM |
| Air Ranges |
0.11-14 SCFM ... 0.32-88 SCFM |
| Max. Pressure |
85 PSIG |
| Max. Temperature |
250 °F |
| Connection |
1/8" - 1" NPT |
| Body Material |
Brass |
|
