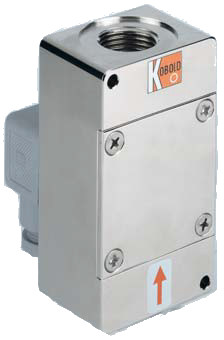

Kobold DFT Compact Paddle Flow Sensor (Brass)
|
Item Number: DFT-D3300
Manufacturer: Kobold Instruments, Inc.
Part Number: DFT-D3300
Product Options
* denotes required field
Kobold DFT-D3300 (Brass) Range Selection*
You must select an option for 'Kobold DFT-D3300 (Brass) Range Selection'.
Kobold DFT Output Options
* Whole number only
|
|
Kobold DFT Compact Paddle Flow Sensor (Brass)
The DFT compact series of paddle flow sensors embodies the same rugged reliability of the workhorse DF series in a compact, more economical design. The DFT uses an inlet nozzle to re-direct flow onto the paddle thus there are no straight piping requirements as with many other paddle type designs. The DFT series is available in two material combinations to handle a wide variety of liquids. The nickel-plated brass version handles water, light chemicals and low viscosity liquids (<10 cSt), while the PTFE version will stand up to aggressive chemicals. An open collector frequency output is standard with optional analog & controller outputs which offer an LCD displays, analog flow transmitters, programmable relays and totalizer & batch controller options.
Features
- Flow Rates From 0.02 to 12 GPM
- PTFE or Brass Bodies
- Frequency Output Standard
- Optional Digital Display, Transmitters, Totalizer & Batch Controllers
- No Straight Run Requirements
- Can Be Mounted in Any Orientation
- Compact, Economical Design
 Technical Specifications
| Measuring / Switching Range |
0.02-0.14 GPM to 0.5-12 GPM |
| Fitting Size Range |
1/4"-3/4" NPT |
| Body Materials |
Brass, PTFE |
| Max. Pressure |
70 PSIG/230 PSIG |
| Max. Temperature |
176 °F |
| Accuracy |
± 2.5 % FS |
| Pulse Output, Analog Output, Contacts, LCD Digital Display |
|
|
Kobold DFT-D3500 flow rates from 0.02 to 12 GPM.
| |
