Kobold DF-MA Paddle Wheel Flow Transmitter (Poly/Stainless, Fixed FNPT Fitting)
|
Item Number: DF-7000
Manufacturer: Kobold Instruments, Inc.
Part Number: DF-7000
Product Options
* denotes required field
Kobold DF-7000 Flow Range Model Selection*
You must select an option for 'Kobold DF-7000 Flow Range Model Selection'.
Kobold DF-MA Signal Output Option*
You must select an option for 'Kobold DF-MA Signal Output Option'.
Kobold DF-MA Power Supply Options*
You must select an option for 'Kobold DF-MA Power Supply Options'.
* Whole number only
|
|

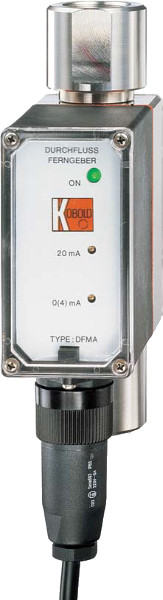

Kobold DF-MA Paddle Wheel Flow Transmitter (Poly/Stainless, Fixed FNPT Fitting)
The KOBOLD DF series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals. The DF is a compact flow sensor which employs permanent magnets embedded in a rotating paddle wheel. A Hall-effect sensor detects the magnet passing and provides an output which is proportional to flowrate. The DF sensor is supplied with a pulse frequency output. The compact size, variety of material combinations and economical price make the DF a perfect flow sensor for many industrial or OEM applications.
Feature
- ±2.5% of Full Scale Accuracy
- Analog Output
- Easy to Install and Maintain
- Robust and Reliable
- No. Min. Requirements for Straight Inlet and Outlet Pipe
- Low Pressure Drop
- 7 Different Material Combinations Available
DF-...MA Special Features ● For transmission of measured flow ● Output 0(4)–20 mASpecificationsPower consumption: 1.5 W max.Power supply: 24 VDC24, 110 VAC, 230 VAC + 15%/–10%Analog Output: 0-20 mA, 4-20 mA, 0-5 VDCor 0-10 VDCLoad: 0-500 ΩTemperature range: –10 to 180°F(145°F for DF 71..)cable connections: (5 ft PVC-cable standard,Plug connection optional)No. 1 Power (–)No. 2 Power (+)No. 5 Analog Output (+)No. 6 Analog Output (–)
Technical Specifications
| Water |
0.02 - 0.14 GPM…1.5-36 GPM |
| Max. temperature |
180°F |
| Max. pressure |
85-1450 PSIG |
| Connection |
G 1/4 - G 1-1/2, 1/4 - 1-1/2 NPT female |
| Accuracy |
±2.5% of full scale |

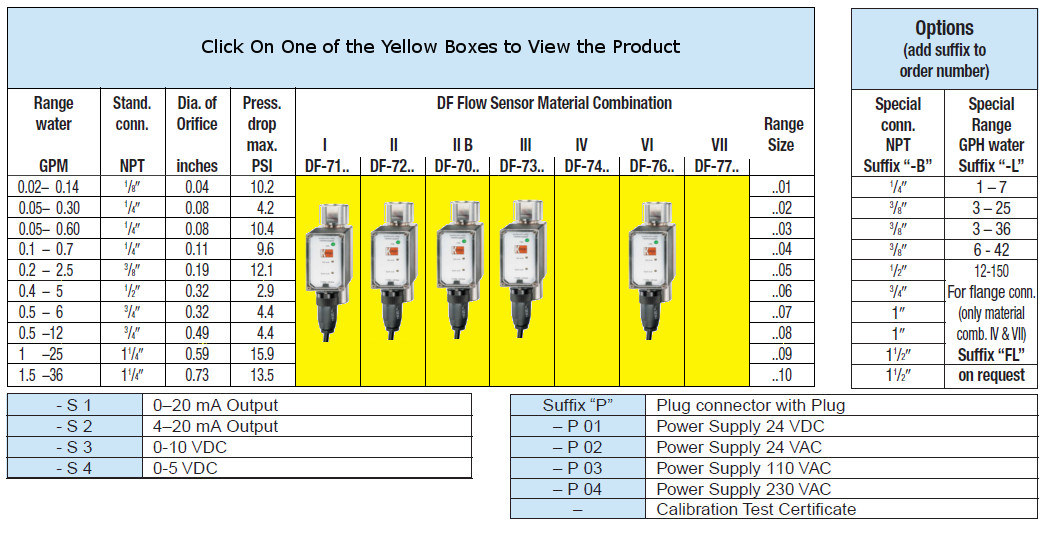

Order Information
|
Kobold DF-0000 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7100 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7300 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7200 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7600 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-8000 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7400 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7700 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4000 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
| |
