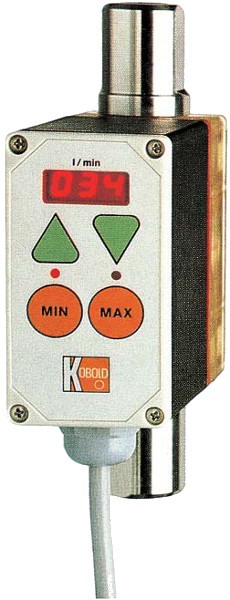

Kobold DF-K Paddle Wheel Flowmeter With Analog Output (All Stainless, Flanged, HI Pressure)
|
Item Number: DF-4700
Manufacturer: Kobold Instruments, Inc.
Part Number: DF-4700
Product Options
* denotes required field
Kobold DF-4700 Flow Range Model Selection*
You must select an option for 'Kobold DF-4700 Flow Range Model Selection'.

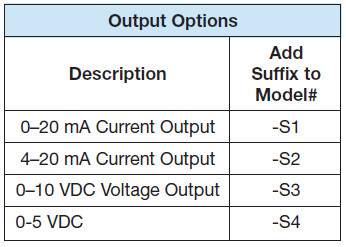

Kobold DF-K Signal Output Option*
You must select an option for 'Kobold DF-K Signal Output Option'.
* Whole number only
|
|
Kobold DF-K Paddle Wheel Flowmeter With Analog Output (All Stainless, Flanged, HI Pressure)
The KOBOLD DF series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals. The DF is a compact flow sensor which employs permanent magnets embedded in a rotating paddle wheel. A Hall-effect sensor detects the magnet passing and provides an output which is proportional to flowrate. The DF sensor is supplied with a pulse frequency output. The compact size, variety of material combinations and economical price make the DF a perfect flow sensor for many industrial or OEM applications.
Feature
- ±2.5% of Full Scale Accuracy
- Analog Output
- Easy to Install and Maintain
- Robust and Reliable
- No. Min. Requirements for Straight Inlet and Outlet Pipe
- Low Pressure Drop
- 7 Different Material Combinations Available

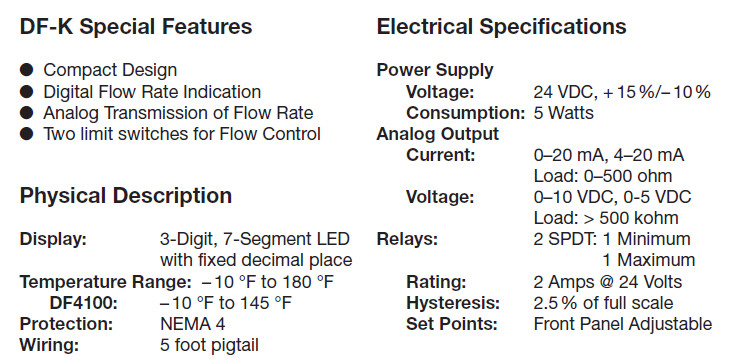

Technical Specifications
| Water |
0.02 - 0.14 GPM…1.5-36 GPM |
| Max. temperature |
180°F |
| Max. pressure |
85-1450 PSIG |
| Connection |
G 1/4 - G 1-1/2, 1/4 - 1-1/2 NPT femal; flange DN 15 - DN 50 |
| Accuracy |
±2.5% of full scale |

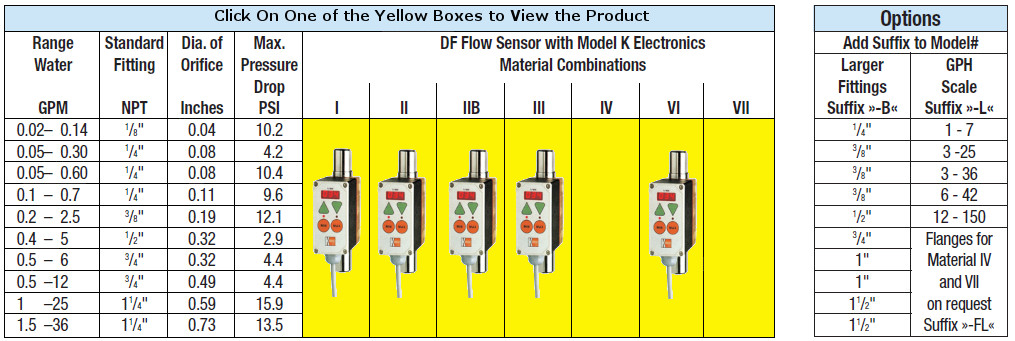

Order Information
|
Kobold DF-0700 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4200 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4100 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4300 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7700 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4000 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4600 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-8700 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4400 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
| |
