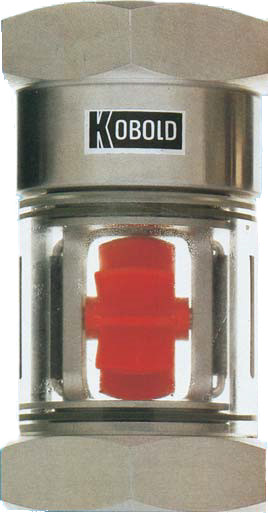

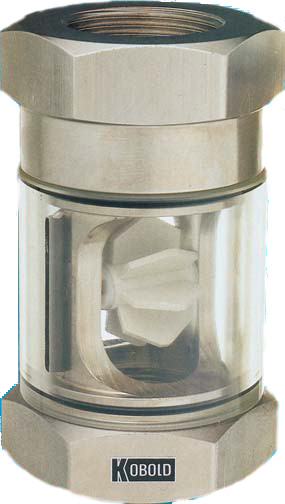

Kobold DAA Flow Indicator with Rotor and Self Cleaning Mechanism

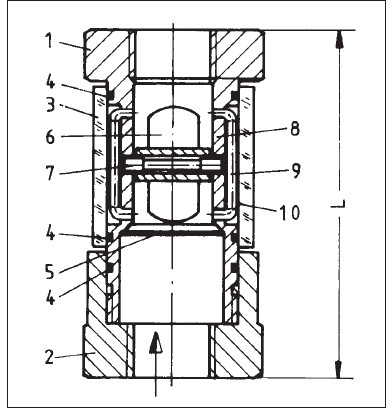

     KOBOLD’s new DAA visual flow indicator features a self-cleaning mechanism to insure full visibility of the rotor at all times. Most types of known flow indicators suffer problems of indicator visibility with use. These problems are the result of dirt build-up on the viewing windows of these devices. For such a device to be cleaned, it must be removed and restored at some convenient time (such as during plant shut-down). Unfortunately, dirt build-up usually does not schedule itself to correspond to planned shut-downs. Enter, the KOBOLD DAA! With a simple twist of the sight glass, integral wipers clean the viewing area to allow unobstructed observation of the rotor. The offending contaminant’s are then simply washed away by the medium flow. This process may be repeated as often as desired-no fuss-no downtime. The DAA is available with brass or stainless steel fittings with female threads 1/4” to 1-1/2” NPT. The body is made of a hard glass (Duran) and the rotor and wipers are synthetic. The device is kept tight and rotatable through the use of low friction o-rings. Try the new DAA, it can be habit forming.

Features

• Transparent Glass Cylinder For Liquids
• Maximum Pressure 230 PSIG
• Self-cleaning Mechanism for the Glass Cylinder
• Universal Mountablity

Technical Specifications

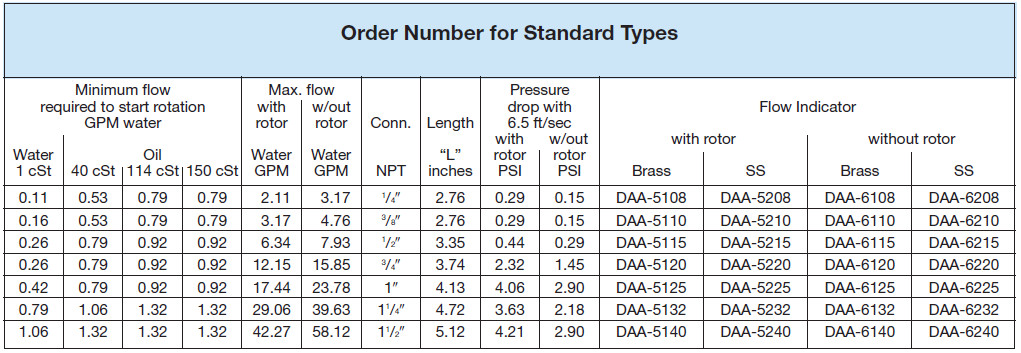

Indicating range	0.11-2.1 GPM….1.1-42 GPM (water)
Fitting	1/4"...1-1/2" NPT

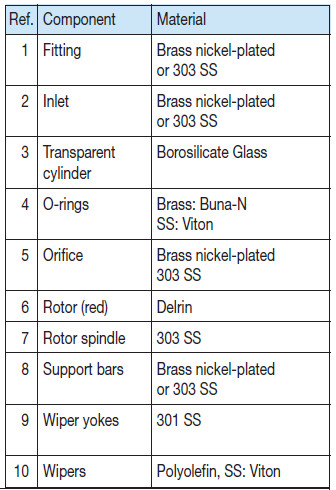

Material	brass, SS
Max. pressure	230 PSIG
Max. temperature	212°F
Viscosity	1 - 150 cSt
