Kimo DBM 610 Air Flow Capture Hood Balometer

Our Price: $4,010.10

Item Number: DBM-610

Manufacturer: KIMO

Part Number: DBM-610

Product Options

Kimo DBM-610 Optional Accessories

Flow Hood - 24" x 24" with support rods and carry case (included with DBM-610) (+ $424.45)

Flow Hood - 28" x 28" with support rods and carry case (+ $424.45)

Flow Hood - 28" x 52" with support rods and carry case (+ $424.45)

Flow Hood - 16" x 60" with support rods and carry case (+ $424.45)

Flow Hood - 40" x 40" with support rods and carry case (+ $424.45)

Data Logging Software Package V.10 (+ $278.81)

Certificate of Calibration (+ $275.00)

Quantity:

Email this page to a friend

Kimo DBM 610 Air Flow Capture Hood, DBM-610 Balometer

Kimo DMB-610 Air Flow Capture Hood Balometer

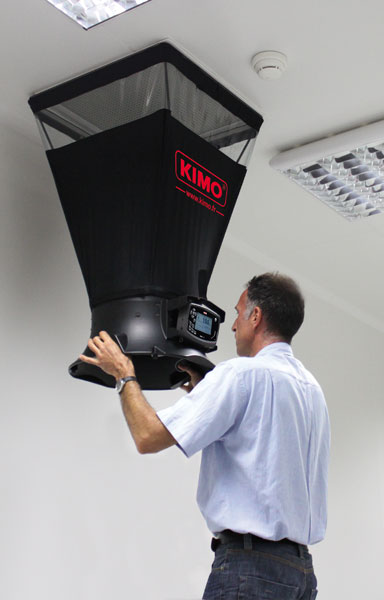

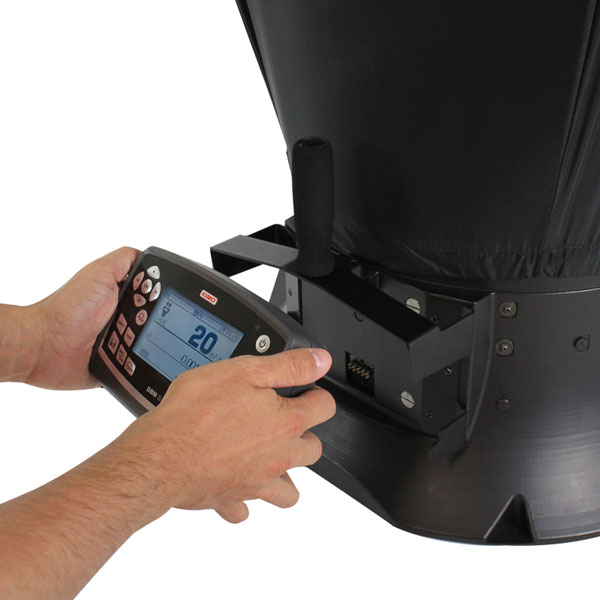

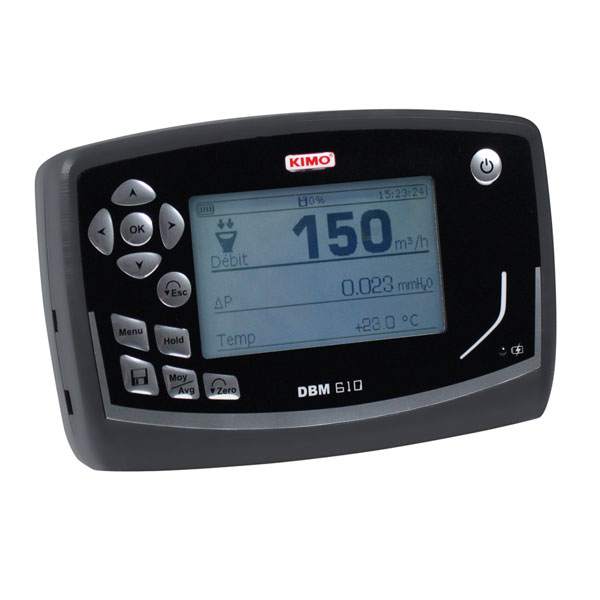

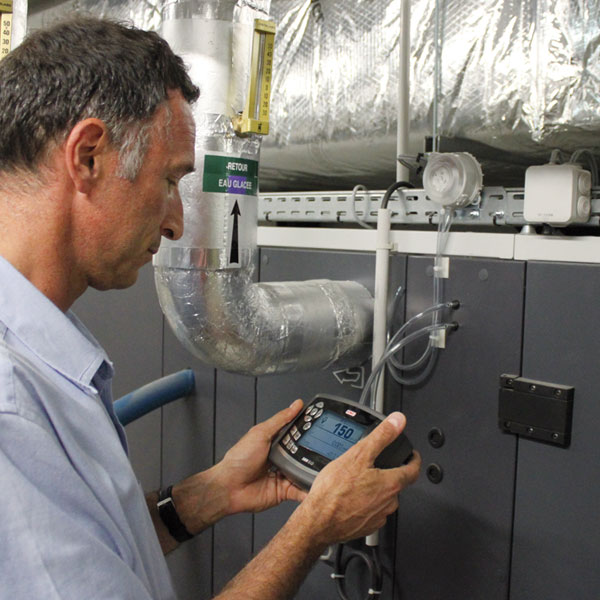

     The Kimo DBM-610 is the next generation flow capture hood. The large digital display reads out air volume, differential pressure and temperature simultaneously. The digital display is removable, allowing it to act as a portable air flow measurement instrument with a pitot tube. It can also be used as a micro-anemometer, measuring low level differential pressure. The DBM-610 is an ideal solution for HVAC airflow commissioning and air balancing. Five different size flow hoods are available to check air flow volume from most diffusers and grilles.

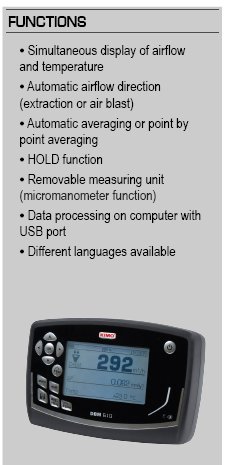

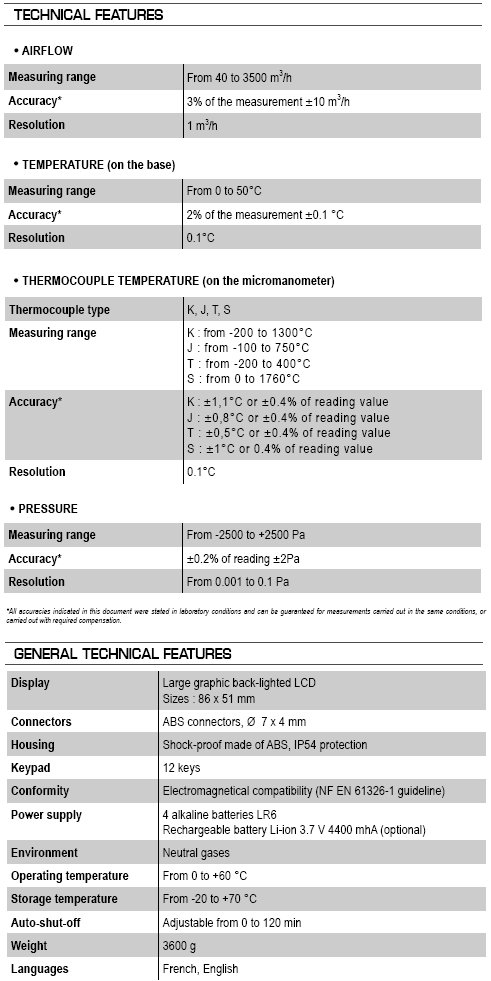

Technical features:
    - Measuring range: from 40 to 3500 M3/Hr (24 to 2060 CFM)

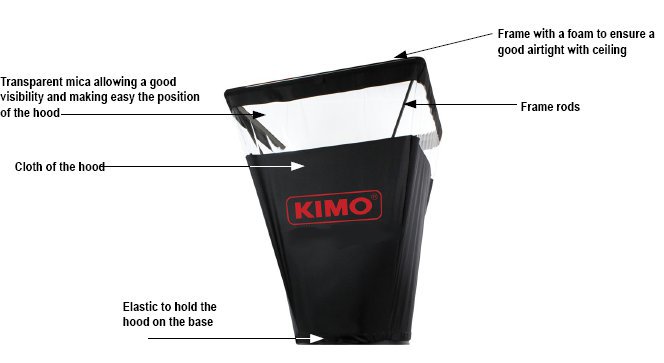

    - Quick and simple hood changes with clear top for easy alignment to flow registers
    - Simultaneous display of airflow and temperature
    - Automatic detection of airflow direction (supply and exhaust)
    - Thermo-anemo/manometer functions (Reads Differential pressure or air flow directly)
    - Save readings in Data Sets
    - Time & Date
    - Reads type J, K, T,S thermocouples
    - Flow readings can be standardized and temperature compensated
    - 48 Point Flow Points across X pattern grid
    - HOLD reading function
    - Average Function (Automatic or Point by Point)
    - Programmable auto off
    - Auto or Manual Zero
    - Readings in Metric or English units
    - Weighs less than 8 pounds!
    - USB PC Interface with Optional data logging software available

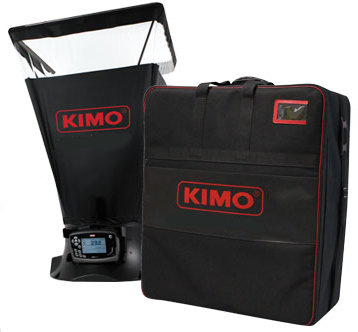

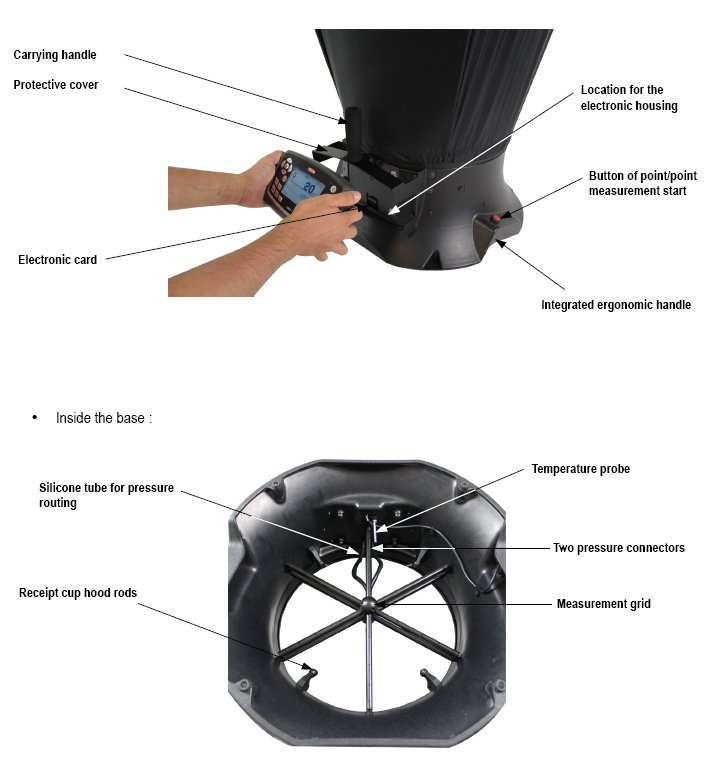

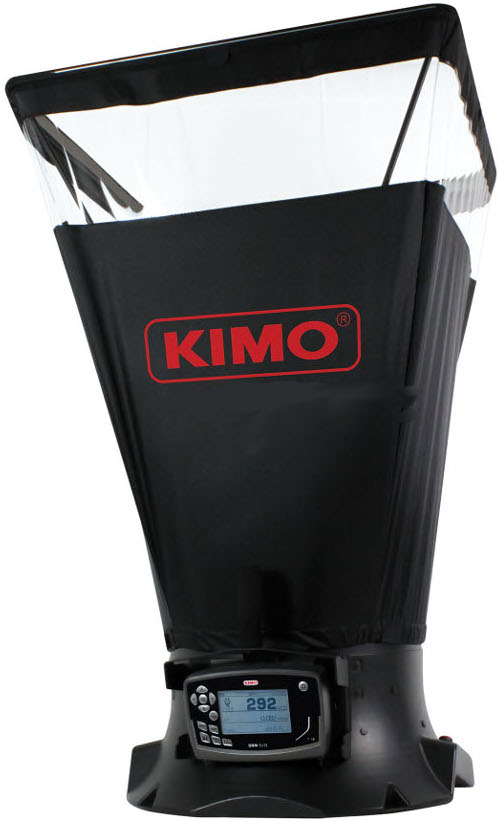

The DBM-610 includes a removable integrated handle, removable digital flow display that also operates as a portable flow meter and micro-anemometer, 24" x 24" capture hood with clear see thru top, 12" pitot tube, two 26" silicone tubes, factory test report and transport case.

Download DBM-610 Data Sheet
