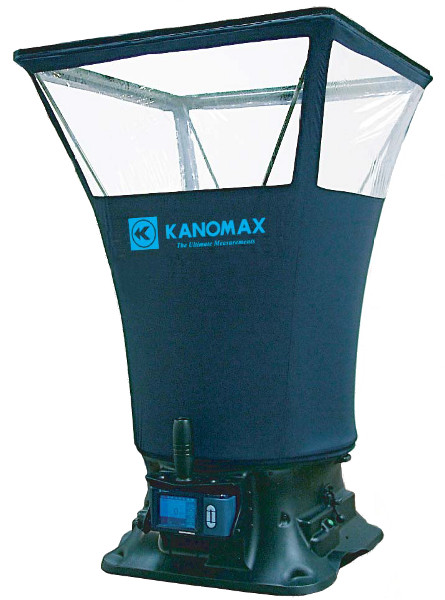

Kanomax TABmaster Model 6710 Capture Hood

Kanomax TABmaster Model 6710 Capture Hood

The new Kanomax TABmaster^TMis the perfect tool for accurate supply and return airflow measurements. Interchangeable hoods make it a snap to sample the air for any duct size. The unit is lightweight and easy to handle.The full color screen can be tilted so it’s always at the optimal viewing angle regardless of height.

Features

23 to 2500 cfm (40 to 4250 m3/h) range
Simultaneously measures and displays air flow, temperature and humidity
Displays the direction of the airflow as well as the velocity
Store up to 3,000 Measurements
Advanced storage feature allows you to store multiple measurements under a single ID#

Applications

HVAC testing, adjusting and balancing
Air volumetric flow measurements through registers, diffusers and grilles
Direct readout at supply and return airflow
Air velocity measurement in the duct
Check filter fouling by measuring differential pressure

Benefits

Easy one-person setup and use
Five hood sizes make it easy to pick one that fits your duct
Built-in back pressure compensation ensures accuracy for large volumetric flow measurements
Competitive economic price with professional-grade features

Technical Specifications

Airflow Measuring Range	23 to 2500 CFM (40 to 4250 m³/h)
Accuracy	3% of measuring +/- 10 m³/h
Resolution	1 m³/h
Temperature Measuring Range	32 to 122°F (0 to 50°C)
Accuracy	+/- 1°F (0 to 50°C)
Resolution	0.1°C
Humidity Measuring Range	0-100% RH
Accuracy	+/- 3.0 %RH
Resolution	0.1 %RH
Standard Hood Dimensions	610x610mm
Optional Hood Dimensions	610x1220mm, 305x1220mm, 500x500mm, 915x915mm, 915x610mm
Power Supply	4 x AA batteries or AC Adapter
Weight & Dimensions	7.9 lbs (3.6 kg), Main Body: 3.4" x 7.4" x 1.6"

Kanomax 6710 Data Sheet
