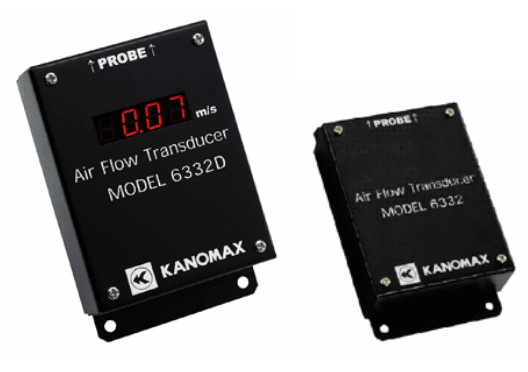

Kanomax Model 6332 Airflow Transducer
|
Item Number: 6332
Manufacturer: Kanomax
Part Number: 6332
Product Options
* denotes required field
Display Options*
You must select an option for 'Display Options'.
Accessory Options (Purchase a probe and cable and that makes a package)
* Whole number only
|
|
Kanomax Model 6332 Airflow Transducer
Features
- 10 interchangeable probe options
- Probes quickly and easily attach/detach
- Digital Display Option (model 6332D)
- Selectable Output (Output can be set to either voltage (0 to 5V) or current (4 to 20mA))
  Technical Specifications
| Model |
6332 / 6332D |
| Measuring Object |
Clean air and compatible, non-combustible gases
|
| Measuring Range |
Maximum range 0.1 ~ 50 m/s (Range dependant on probe type*)
|
| Temperature Compensation Range |
|
0.1-4.99 m/s
|
5.00-9.99 m/s
|
10.0-24.9 m/s
|
25.0-50.0 m/s
|
5~40°C
|
±0.25 m/s
|
±0.50 m/s
|
±1.25 m/s
|
±2.50 m/s
|
40~80°C
|
±0.35 m/s
|
±0.70 m/s
|
±1.75 m/s
|
±3.50 m/s
|
|
| Selectable Output Option |
(Set via onboard DIPswitch).
Current output: DC 4~20mA (Max. load resistance: 250Ω)
Voltage output: DC 0~5V
|
| Selectable Range Option |
(Rotary Switch selectable).
0~2, 0~5, 0~10, 0~25, or 0~50 m/s
|
Display Resolution
(Model 6332D only) |
Velocity Range: 0~2, 0~5, 0~10 m/s → Display Resolution: 0.01m/s
Velocity Range: 0~25, 0~50 m/s → Display Resolution: 0.1m/s
|
| Power Supply |
DC 12~24V
|
| Power Consumption (Reference Value) |
Approx. 2.0W (Under the following conditions - power supply: 12V, air velocity: approx. 10m/s, using a unit with a display with probe model 0965-03.)
Power consumption rate is subject to change according to conditions such as air velocity, probe type and use of display.
|
|
Connection Wire Size
|
0.5 ~ 1.5 mm2
|
|
Operating Temperature Range
|
5 ~ 40°C
|
|
Storage
Temperature Range
|
-10 ~ 50°C
|
| Dimensions |
Approx. 128(W)×78(D)×30(H) mm
|
|
Weight
|
Approx. 320g (11oz.)
|
| Standard Accessory |
Operation Manual : 1, Main Unit Case: 1
|
|
Optional Accessory
|
Probe Cable (10m, 20m, 30m), Display Unit (Supplied with a case with a display window and 2 installation screws.), Dedicated AC Adapter (DC12V) |

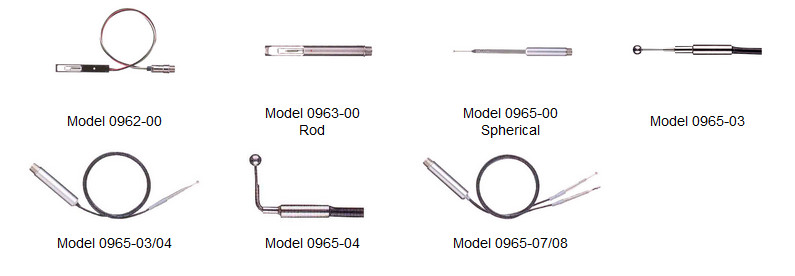

| Probe Specifications |
Model
|
Measuring Range
|
Sensor Type
|
| 0962-00, 0963-00 |
0.1~50.0m/s
|
Uni-directional |
| 0964-01, 0964-02 |
Omni-directional (Needle) |
| 0965-00, 0965-01 |
0.1~25.0m/s |
Omni-directional (Spherical) |
0965-03, 0965-04
|
0.1~25.0m/s
|
Mini-temperature-compensation-sensor integrated type
Omni-directional (Spherical) |
0965-07, 0965-08
|
Mini-temperature-compensation-sensor independent type
Omni-directional (Spherical) |
|
