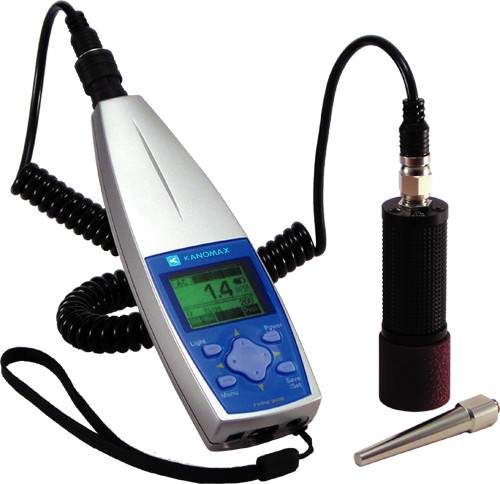

Kanomax Model 4200 Vibration Meter

Kanomax Model 4200 Vibration Meter

Features

Compact size maximizes technician mobility
Magnetic accelerometer increases measuring accuracy and ease-of-use
Built-in RS232 interface allows data output to a PC or direct output to a printer
Includes meter, accelerometer with cable and magnet, contact pin, 2 x AAA batteries, carrying case, and Calibration Certificate

Technical Specifications

Measurement Range	Acceleration	0.02 to 200 m/s² RMS
	Velocity	0.02 to 200mm/s RMS
	Displacement	2 to 2000 m EQp-p
Frequency Range	Acceleration	3Hz to 10kHz
	Velocity	10Hz to 1kHz (Compliant with JIS B0907-1989)
	Displacement	10 to 400Hz
Readings		RMS, Peak, EQ Peak, EQ Peak-to-Peak
Output	AC Output	1Vrms (Full Scale)
Output	Headphone Output	Portable Headphones w/Volume function
Interface		RS232C
Operating Environment	Temperature	-10 to 50°C
Operating Environment	Humidity	30% to 90% (no condensing)
Power Supply		2 x AAA batteries or AC adapter
Dimensions and Weight		5.7"(H)x1.9"(W)x0.9"(D) Approx. 4.6 oz.
