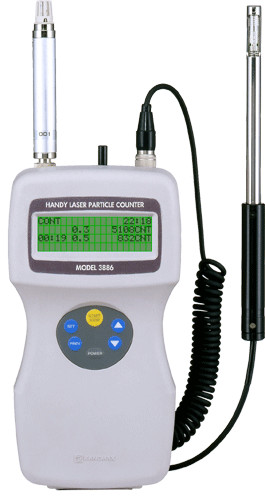

Kanomax Model 3886 Handheld Particle Counter
|
Item Number: 3886
Manufacturer: Kanomax
Part Number: 3886
* Whole number only
|
|
Kanomax Model 3886 Handheld Particle Counter
Applications
- Cleanroom verification
- Clean Bench verification
- IAQ Investigation
- Food Process Investigation
- Hospital Surgical Room
- Filter Testing
Features
- Measures 5 particle sizes; 0.3, 0.5, 1.0, 3.0 and 5.0 um in cf or m3
- Built-in flow sensor (0.1 CFM +/- 10%)

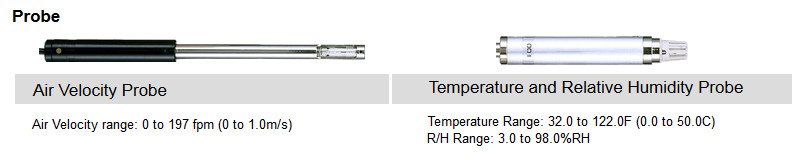

- Optional Temp./RH and Air Velocity probes available
- Capable of measuring up to 4 parameters in one instrument
 Technical Specifications
| Channel Sizes |
0.3 um, 0.5 um, 1.0 um, 3.0 um, 5.0um |
| Flow Rate |
0.1 cfm (2.83 l/min) |
| Light Source |
Laser Diode
|
| Calibration |
PSL particles in air
|
| Counting Efficiency |
50% at 0.3 um; 100% for particles > 0.45 um (ISO 21501-4)
|
| Zero Count |
Less than 1 count / 5 minutes (ISO 21501-4)
|
| Coincidental Loss |
Less than 5% at 2,000,000 particles/cf
|
| Sampling Time |
1 sec - 99 min 59 sec (1 second increment)
|
| Sampling Frequency |
1 - 99 or continuous
|
| Count Modes |
Single, Repeat, Continuous, Calculation and Remote mode
|
| Display |
LCD: 20 letters, 4 lines
|
| Interface |
RS232C or RS485
|
| Baud Rate |
9600 bps
|
| Buffer Memory |
500 sample records |
| Power |
AC Adapter |
5VDC at 2.5A, 100 - 240VAC, 50 to 60 Hz |
| Battery |
4 x AA Battery |
| Operating Time |
3.5 hrs with 1600mAh Batteries |
| Vacuum Source |
Internal pump, flow controlled |
| Dimensions |
W 4.5 x D 2.8 x H 8.5 inch (115 x 70 x 211 mm) |
| Weight |
2.2 lbs (980 g) |
| Accessories |
AC Adapter, Zero Filter |
| Options |
Isokinetic Probe, Air Velocity Probe, Thermal Printer,
Temperature/Relative Humidity Probe, Carrying Case
|
Includes:
Operation Manual, AC Adapter, Zero Filter, Meter Handle, Calibration Certificate
|
