Kanomax Model 2211 Handheld IAQ Monitor
Our Price: Discontinued -Call for Replacement-
Item Number: 2211
Manufacturer: Kanomax
Part Number: 2211
|
|

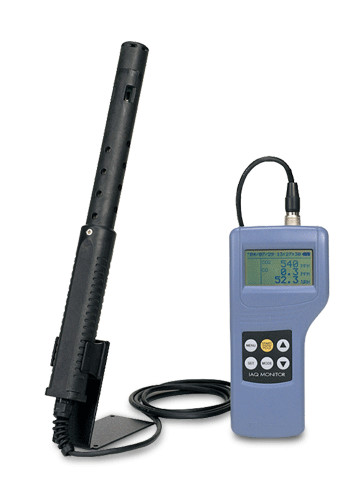

Kanomax Model 2211 Handheld IAQ Monitor
The Kanomax IAQ Monitor 2211 features quick start-up and high accuracy in measuring carbon dioxide and carbon monoxide concentration levels in the environment. Temperature and humidity are also simultaneously measured in ah handy lightweight design.
Features
- Simultaneously measures and data log multiple parameters such as: CO, CO2, Temperature, Relative Humidity, to monitor indoor air quality conditions.
- Calculates Dew Point, Web Bulb Temperature, Absolute Humidity, Humidity Ratio and % Outside Air.
- Built-in memory allows user to store multiple point measurements. o Equipped with RS232C terminal.
Applications
- IAQ Investigation
- Ventilation Testing
- Thermal Comfort Control
- Monitoring Toxic Gas
Benefits
- Easy user calibration with built-in calibration function.
- Capable to continuously monitor parameters via PC.
- Large LCD shows multiple parameters at a glance.
- Calculates dew point, wet bulb temperature, absolute humidity and humidity ratio.
Technical Specifications
| CO |
Range |
0 to 500PPM |
| Accuracy |
+/-3% of reading or +/-3PPM whichever is greater |
| Resolution |
0.1PPM: 0-99PPM 1PPM: 100-500 PPM |
| CO2 |
Range |
0 to 5000PPM |
| Accuracy |
+/-3% of reading or+/-50PPM whichever is greater |
| Resolution |
1PPM |
| Temperature |
Range |
- 4 to 140F (-20 to 60C) |
| Accuracy |
+/- 1F (+/-0.5C) |
| Resolution |
0.1F (0.1C ) |
| Relative Humidity |
Range |
2 to 98%RH |
| Accuracy |
2 to 80%RH:±2%RH, 80 to 98%RH:±3%RH |
| Resolution |
0.1%RH |
| Function |
Normal Mode
|
Normal measuring (do not store and calculate the data.) Relative humidity, CO, CO2, Dew point, Wet bulb temperature, Absolute humidity and Humidity Ratio |
Calculation Mode
|
Store the data, and calculate the maximum, minimum and average value.
|
% OA Mode
|
Measure ventilation ratio (Ask for ventilation ratio by calculating from temperature and CO2 value)
|
Data Output Mode
|
Perform re-calculation of stored data and output of data to PC and Printer.
|
Calibration Mode
|
Perform the calibration of CO and CO2.
|
| Output |
Digital |
RS232C
|
| Analog (option) |
DC 0 to 1V
|
| Power Supply |
AAA Battery x 4 (Mn, Alkaline, or Ni-Cd) |
| Dimensions |
Unit |
3.5" x 7.5" x 2.0" |
| Probe |
Length: 12.5 inch / Diameter: 1.0 inch |
| Weight (including batteries) |
Approx. 1.2 lbs (500g) |
|
