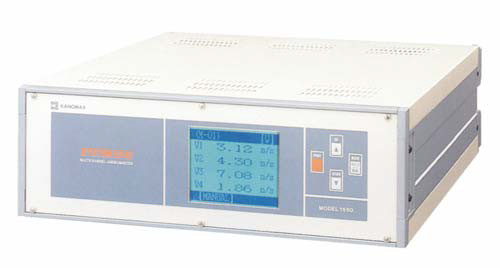

Model
1550
1560
Display
LCD (with backlight) Simultaneously displays on a module basis
MAN: Select modules by operating the UP/DOWN switches
AUTO: Automatically select s modules every 2 seconds to display data
Function
Burst Mode: Transfers data of all channels at high speed Channel Mode: Transfers data of the specific channel only
Data Selection: Outputs instantaneous values every specified sampling time, and outputs the average
Interface
Data transfer: RS232C (standard), extended RS232C (optional) and GP-IB (optional)
Baud Rate: 300, 600, 1200, 2400, 4800, 9600, 19200bps(selectable)
Printer output: Centronics (the system prints data only of the module display, every 2 seconds.)
Dimensions
16.9” x 19.6” x 5.5” (430 x 500 x 140 mm)
8.9” x 12.8” x 5.5” (226 x 325 x 140mm)
Weight
Approx. 22lbs (Approx. 10kg)
Approx. 11lbs (Approx. 5kg)
