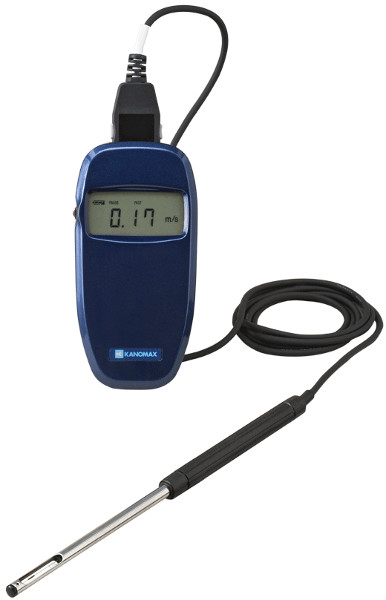

Kanomax Anemomaster LITE Model 6006 Handheld Hot-wire Anemometer
|
Item Number: 6006-0E
Manufacturer: Kanomax
Part Number: 6006-0E
* Whole number only
|
|
Kanomax Anemomaster LITE Model 6006 Handheld Hot-wire Anemometer
Features
- Broad measurement range
- Detachable probe for zero downtime calibration or replacement
- Temperature compensation circuit for high accuracy
- Display readings in both metric and imperial units
Applications
- HVAC Ventilation Testing and Balancing
- Laboratory Control
- Flow Hood Performance Testing
- IAQ Investigation
- Industrial Hygiene Quality Control
Benefits
- Compact and extremely durable
- Low Price, Kanomax quality throughout
- Highly accurate, long-life Platinum sensor
- Single button multi-function switch for easy one-hand operation of power on/off, set time constant, read temperature, hold result

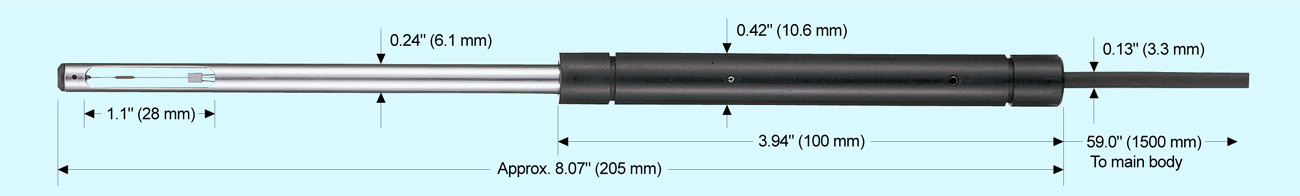

Probe Dimensions
Technical Specifications
| Air Velocity |
Range
|
2 to 3,940 fpm (0.01 to 20.0m/s) |
Accuracy
|
+/- 5% of reading or +/- 0.015 m/s whichever is greater |
Response Time
|
Less than 1second at 196 fpm (1m/sec), 90% response
|
Resolution
|
0.01 m/s (@ 0.01 to 9.99 m/s)
0.1 m/sec (@10.0 to 20.0 m/s)
|
Air Temperature
|
Range
|
-4 to 158°F (-20 to 70°C)
|
Accuracy
|
+/-2°F (1°C)
|
Response Time
|
Less than 30 seconds at 196 fpm (1 m/sec), 90% response
|
Resolution
|
0.2 F (0.1 C)
|
| Power Supply |
4 x AA batteries |
| Operating Temperature |
Main unit
|
41 to 104°F (5 to 40°C) |
| Probe |
-4 to 158°F (-20 to 70°C) |
| Storing Environment |
14 to 122°F (-10 to 50°C) |
Dimensions
|
Main unit |
2.4"(60mm) x 4.7"(120mm) x 1.2"(30mm) |
| Probe |
Probe: 0.24" or 0.40"(6 or 10mm) diameter x 7.9"(200mm) length.
Probe cable: 0.13"(3.3mm) diameter x 59"(1,500mm) length. |
Weight
|
0.4 lbs (180 g)
|
| Accessories |
Operation Manual, AA Batteries, Extension Rod, Carrying Case, NIST Certificate |
| Option |
Spare Probe |
|
