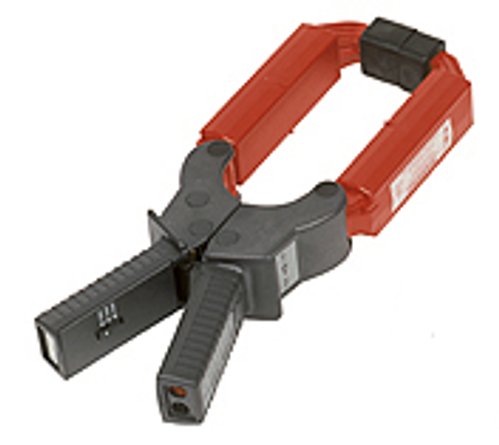

AEMC Model JM840A AC Current Probe (500A-2mA/A, 1000A-1mA/A, 1500A-.66mA/A, Jack)
Our Price: Unit has been discontinued. Please call (732) 632-6400 for replacement options.
Item Number: 2110.85
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2110.85
|
|
AEMC Model JM840A AC Current Probe (500A-2mA/A, 1000A-1mA/A, 1500A-.66mA/A, Jack)
The JM840A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 500AAC/1000AAC/1800AAC. The "squared" jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction.
AEMC Model JM840A AC Current Probe Features:
-
Nominal range: 1 to 500AAC, 1 to 1000AAC, 1 to 1500AAC (continuous cycle for the full temperature range)
-
Transformation ratio: 500:1, 1000:1, 1500:1
-
Output: 2mA/A, 1mAAC/AAC, 0.66mAAC/AAC
-
Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
AEMC Model JM840A AC Current Probe Applications:
-
Electrical utility HVAC
-
Industrial maintenance
-
Laboratory
-
Plant maintenance

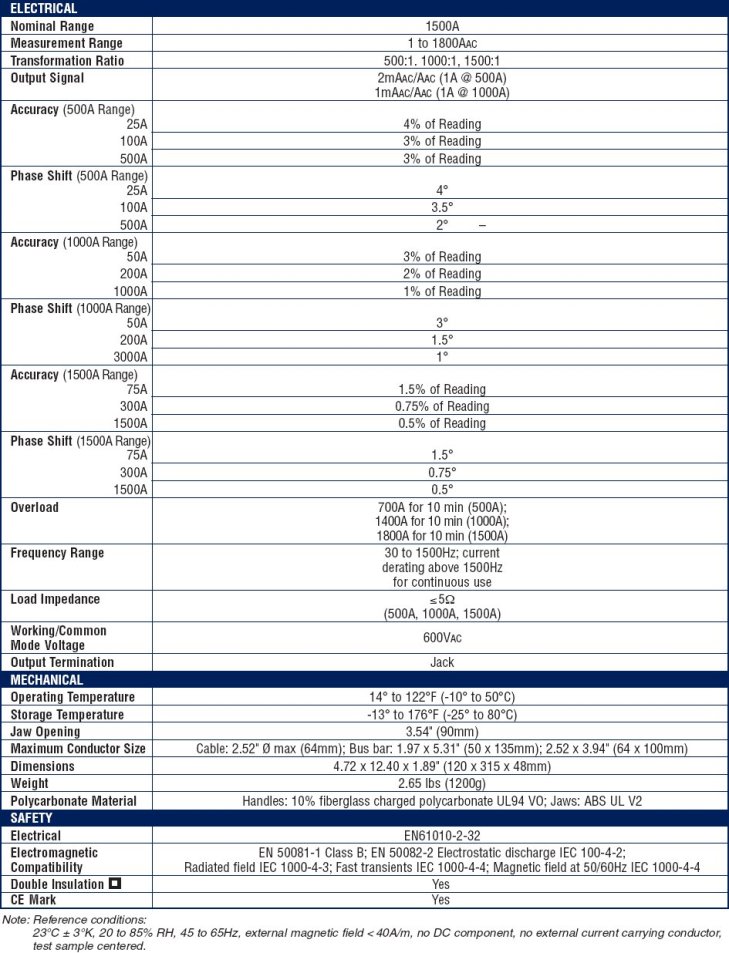

AEMC Model JM840A AC Current Probe Specifications:
|
