JH Technology JH4300C Plug-N-Play 4-20mADC Current Isolator
Our Price: Call for Replacement Options
Item Number: JH4300C
Manufacturer: JH Technology
Part Number: JH4300C
|
|
JH Technology JH4300C Plug-N-Play 4-20mADC Current Isolator

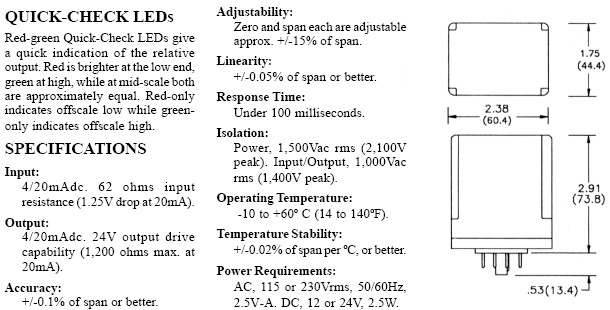

The Model JH4300C Process Current Isolator takes a 4/20mAdc input and provides an equal but isolated 4/20mA output. Isolation eliminates many ground loop and noise problems, while its 24-volt output drive capability “boosts” the signal to drive high-resistance loops. The input is filtered to minimize high-frequency noise and transients.
Although not a dual-output device, the JH4300C often can be used to split 4/20mA current loops at a cost lower than standard loop splitters.
This transmitter is a low-cost, single-range version of our full-featured Model JH4300 DC Input Transmitter. For other ranges or additional options, please refer to Model JH4300.
Features
- Low-Cost 4/20mA Isolator/Booster
- Input drops only 1-1/4 volts (62 ohms)
- Output drives up to 1,200 ohms
- Applications Include Loop-Splitting
- Full 4000 Series Accuracy, Lower Cost
- Industry Standard Pinouts (8-Pin Socket)
- AC or DC Power Options
|
