INOR MINIPAQ-HLP Low Profile Basic Programmable 2-Wire Transmitter

INOR MINIPAQ-HLP Low Profile Basic Programmable 2-Wire Transmitter

No external power supply required for configuration.  The transmitter is programmable for RTD's in 3- and 4-wire connection according to different standards as well as for 11 T/C types.  Useful error correction functions improve the accuracy.

Features

• Robust terminals with test connections
• Only 18.5 mm / 0.72 inch high
• Accepts RTD in 3- and 4-wire connection and 11 T/C types
• Temperature linear output
• Sensor error and system (sensor/transmitter) error correction for highest total accuracy
• Configuration without external power
• Easy-to-use Windows configuration software
• NAMUR compliant
• Rugged design tested for 10 g vibrations
• USB communication

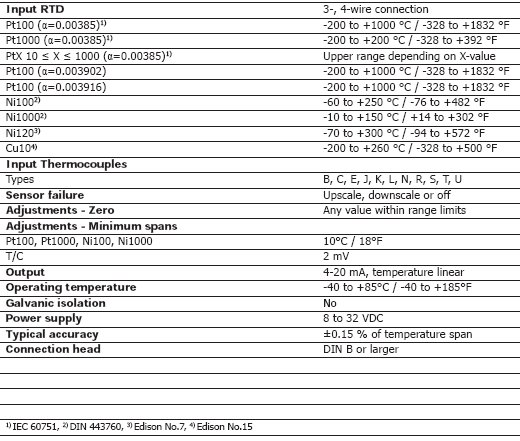

Technical Specifications

Input Connections

Output Connections

Output Load Diagram

Dimensions

INOR USB Configuration Kit (Complete Package, except HART modem)

• INOR USB Interface
• Adapter Cables

• Software on Flashdrive

• Works with Windows 2000 through 8.1


Configuration

• PC Programmable
