INOR MESO-L Universal HART-Compatible 2-Wire Transmitter

INOR MESO-L Universal HART-Compatible 2-Wire Transmitter

MESO-L is fully HART-compatible, with communication through the HART protocol, directly on the 4-20 mA output loop, by using either a general hand-held HART Communicator or the Inor PC software, MEPRO 2.  MEPRO 2 is a Windows based and user friendly software, which facilitates the access to and use of functions like transmitter configuration, documentation, monitoring and calibration.

Features

• Utilizes HART protocol for remote configuration and monitoring
• Communicates with HART Communicator or PC via modem
• Fully universal, linearized and isolated
• Accepts RTD, T/C, mV and ohm
• Sensor error correction
• 50 point linearization – any sensor can be matched
• Consistent sensor break function
• Simplified loop check-up with calibration output
• Full access to all features while in operation
• Low sensor isolation detection
• MEPRO, easy-to-use Windows configuration software
• Integrated in Emerson AMS and Siemens PDM systems

Functions

• Fully HART® Compatible
  True on-line communication with hand-held HART
  Communicator or Windows software MEPRO 2.
• Input for RTDs, T/Cs, mV and resistance
  Reduced inventory costs.
  Simplified plant engineering.
• Efficient customized 50-point linearization
  Any sensor characteristics can be matched.
• Sensor diagnostics
  SmartSense detects low sensor isolation (essential for correct measurements).
  Selectable sensor break action.
• Simplified loop check-up
  The transmitter works as an accurate current generator.
• On-screen indications of input and output
  Valuable tools for temporary measurements.
• Improved QA with data storage
  Vital information, such as TAG-No., maintenance record etc. can be stored in the nonvolatile memory.

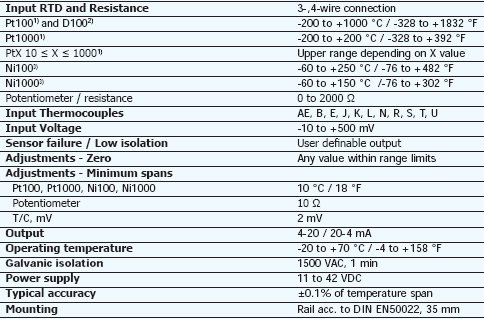

Technical Specifications

Input Connections

Output Connections

Output load diagram

Dimensions

Configuration

• Programmable via HART protocol
• Also programmable with HART modem and free MePRO INOR Windows software
