INOR MESO-H/-HX Universal HART-Compatible 2-wire Transmitters

INOR MESO-H/-HX Universal HART-Compatible 2-Wire Transmitters

MESO-H is a Smart and universal 2-wire Inhead transmitter for temperature and other measurement applications.

MESO-HX is the Intrinsic Safe version for use in Ex-applications.

MESO-H and MESO-HX are fully HART-compatible, with communication through the HART protocol, directly on the 4-20 mA output loop, by using either a general hand-held HART Communicator or the Inor PC software, MEPRO 2.

MEPRO 2 is a Windows based and user friendly software, which facilitates the access to and use of functions like transmitter configuration, documentation, monitoring and calibration.

Features

• Utilizes HART Protocol for remote configuration and monitoring
• Communicates with HART Communicator or PC via modem
• Fully universal, linearized and isolated
• Accepts RTD, T/C, mV and Ohm
• Sensor error correction
• Easy wiring, large center hole
• 50 point linearization – any sensor can be matched
• Consistent sensor break function
• Full access to all features while in operation
• Low sensor isolation detection
• MEPRO, easy-to-use Windows configuration software
• Integrated in Emerson AMS and Siemens PDM systems

Functions

• Fully HART® Compatible
• True on-line communication with hand-held HART Communicator or Windows software MEPRO 2.
• Input for RTDs, T/Cs, mV and resistance
  Reduced inventory costs.
  Simplified plant engineering.
• Efficient customized 50-point linearization
  Any sensor characteristics can be matched.
• Sensor diagnostics
  SmartSense detects low sensor isolation (essential for correct measurements).
  Selectable sensor break action.
• Simplified loop check-up
  The transmitter works as an accurate current generator.
• On-screen indications of input and output
  Valuable tools for temporary measurements.
• Improved QA with data storage
  Vital information, such as TAG-No., maintenance record etc. can be stored in the nonvolatile memory.

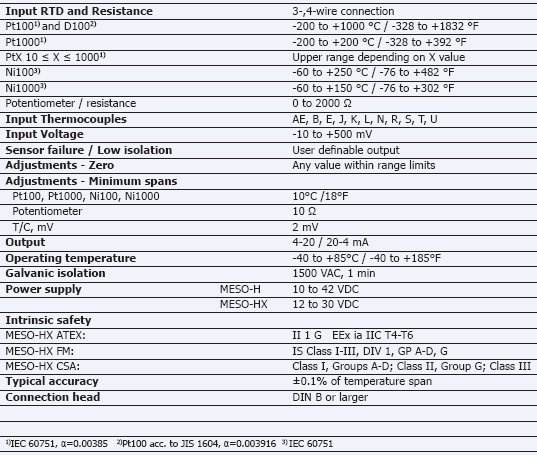

Technical Specifications

MESO-H: In-Head HART Communication Transmitter, Isolation 1500 V AC

MESO-HX (FM):  In-head HART Communication transmitter, DIN-B mounting,  isolation 1500 VAC, FM/CSA Approval

MESO-HX (ATEX): In-head HART Communication transmitter, Demko 03 ATEX 134077X  Ex II 1G EEx ia IIC T4-T6

Input Connections:

Output Connections:

Output Load Diagram:

Dimensions:

Configuration

• Programmable via HART protocol
• Also programmable with HART modem and free MePRO INOR Windows software

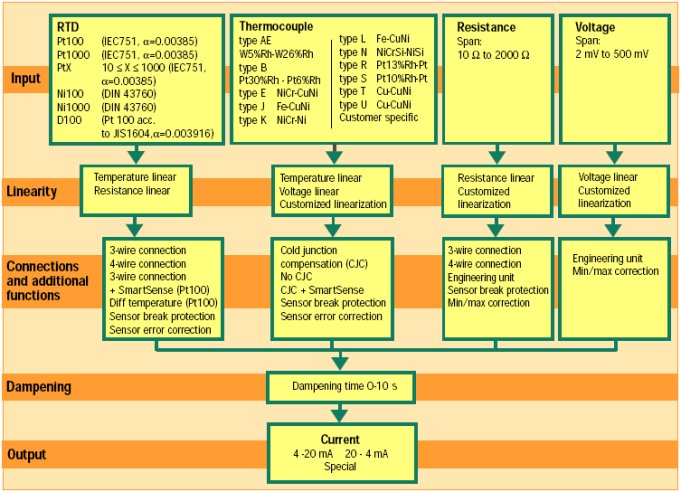

MESO-H/MESO-HX Configuration Scheme:
